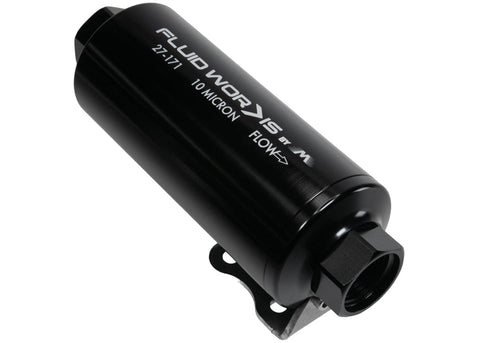

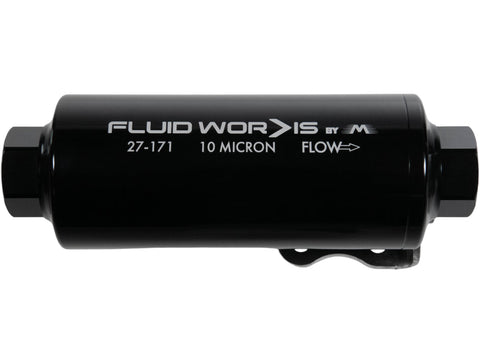

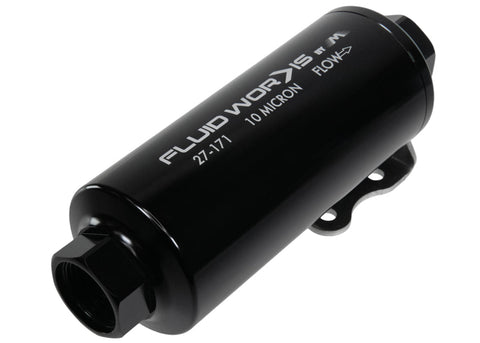

Fluidworks 12GPM 12ORB Post Fuel Filter w/ Mount (10 or 100 Micron Options Available)

Fluidworks Single 12ORB Inlet/Outlet Fuel Filter w/ integrated mount (10 or 100 Micron)

The integrated bracket system has a simple two bolt design that makes the filter mounting easy by bolting OR welding. The mounting bracket also allows you to unscrew the other side of the filter to service or replace the filter element without unbolting the bracket and fully removing the filter from the vehicle.

Note: 10 micron is the filtration size that most fuel injector manufacturers call for pre injectors. The 100 micron pre filter is used before fuel pumps to eliminate large and harmful particulate while allowing for high flow fuel on the suction side of the fuel pump.

Features:

• Single 12ORB Inlet
• Single 12ORB Outlet
• Integrated mounting bracket for low profile and easy mounting solution
• Completely Made in the USA
• Billet Construction
• Integrated

• Supports fuel systems up to 12GPM
• Approved for use with Gasoline, Oxygenated, Ethanol and Alcohol Fuels
• Hard anodized

We recommend replacing the micro glass filter often to reduce the risk of blockage due to the size of the filter pores. These filters are not able to be reused or cleaned unlike the stainless 100 micron. Failure to replace this may cause premature failure and extra stress on fuel pump.
