10 Micron Extreme Flow Fuel Filter with AN-16 ORB Ports & Microglass Element

P/N 12364: Extreme Flow 10-m Microglass AN-16 ORB Fuel Filter
Max flow filtration for Brushless Gear and Mechanical Fuel Pumps

High-flow 10-m (absolute) Microglass filter ideal for broad fuel applications including Alcohol Methanol, Ethanol, Gasoline and Diesel fuel using mechanical or electric fuel pumps up to 32-GPM.

This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

Suitable as a post filter with mechanical or electric pumps up to 32-GPM.

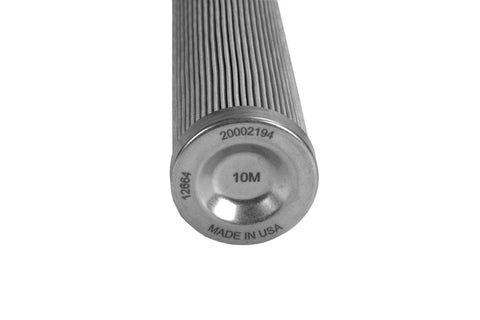

• High-flow, 10-micron (absolute) Microglass disposable element.
• Ideal for use with gasoline, Alcohol Methanol, Ethanol and Diesel fuels.
• Suitable post filter for up to 32-GPM fuel pumps of all types.
• Flows 9,000 lb/hr (24-GPM) with clean pressure drop less than 2-PSI.
• Flows 12,000 lb/hr (32-GPM) with clean pressure drop less than 3-PSI.
• AN-16 ORB ports. Fittings available to adapt these filters from AN-16 down to AN-08 line sizes. (see Fittings & Adapters).
• Extreme-Flow filters feature a tough, Hard-Coat Black finish.
• 10" long x 2-5/8" diameter.
