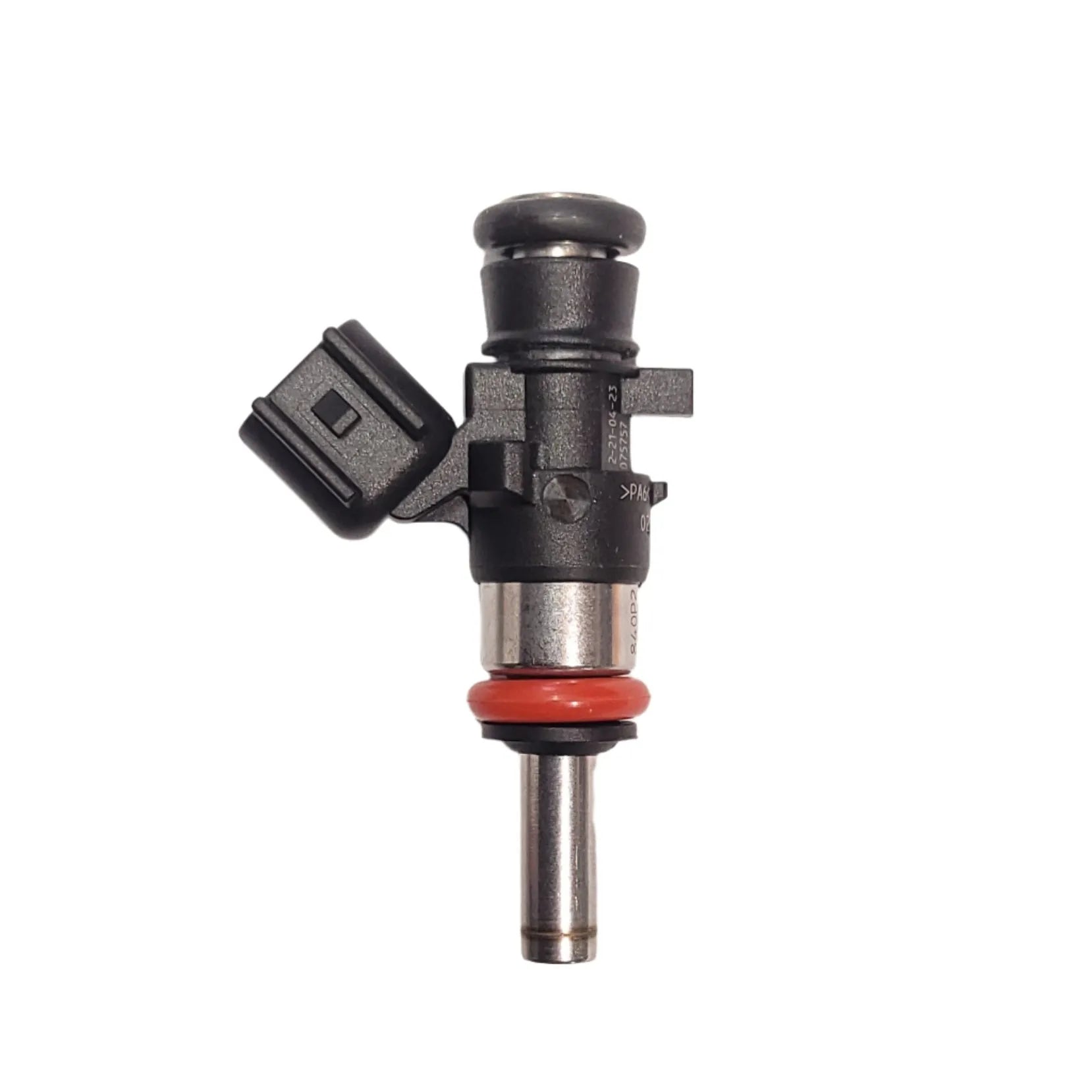

1440cc @ 43.5psi Bosch EV6 34/38mm (48mm or 60mm if Using a Spacer) LS Fuel Injectors

1440cc @ 43.5psi Bosch EV6 34/38mm LSA LS1 LS2 LS3 LS9 LSX LS7 Fuel Injectors (Set of 8 Injectors)

Discover our exclusive Private Label Bosch-manufactured injectors, featuring the latest technology and insights from ASNU-DFK and Greg Banish’s Injector Flow Bench.

Key Features:

• Precision Matching: Each set is meticulously matched using our digital ASNU flow bench, with injector data included on a thumb drive.
• Stainless Valves: Engineered to handle almost any fuel type, including pump gasoline, E85, Q16, VP Import, FTW, M1, M5, and other MTBE oxygenated race fuels.
• Bosch Quality: Renowned for unmatched build quality and reliability, Bosch injectors offer exceptional fuel atomization for optimal combustion, ensuring maximum efficiency and power. Produced to original equipment (OE) specifications, Bosch injectors have a return rate of just 1 part per million (PPM), setting the industry benchmark.
• Digital Flow Sheet: Each set includes a detailed flow sheet displaying both static and dynamic flow data, with over 10,000 points of data taken to precisely match each set of injectors. Deviation at low injector pulse width and minimum open time are clearly displayed, allowing your calibration expert to quickly determine the minimum injector pulse width for your application.
• Easy Installation: Comes with all necessary o-rings for factory applications, ensuring a hassle-free installation.
• Warranty: Backed by a 1-year warranty against original manufacturing defects. Note: Clogged or sticking injectors due to moisture, E85, or corrosive fuels are not covered by this warranty.

Sizing Guide:

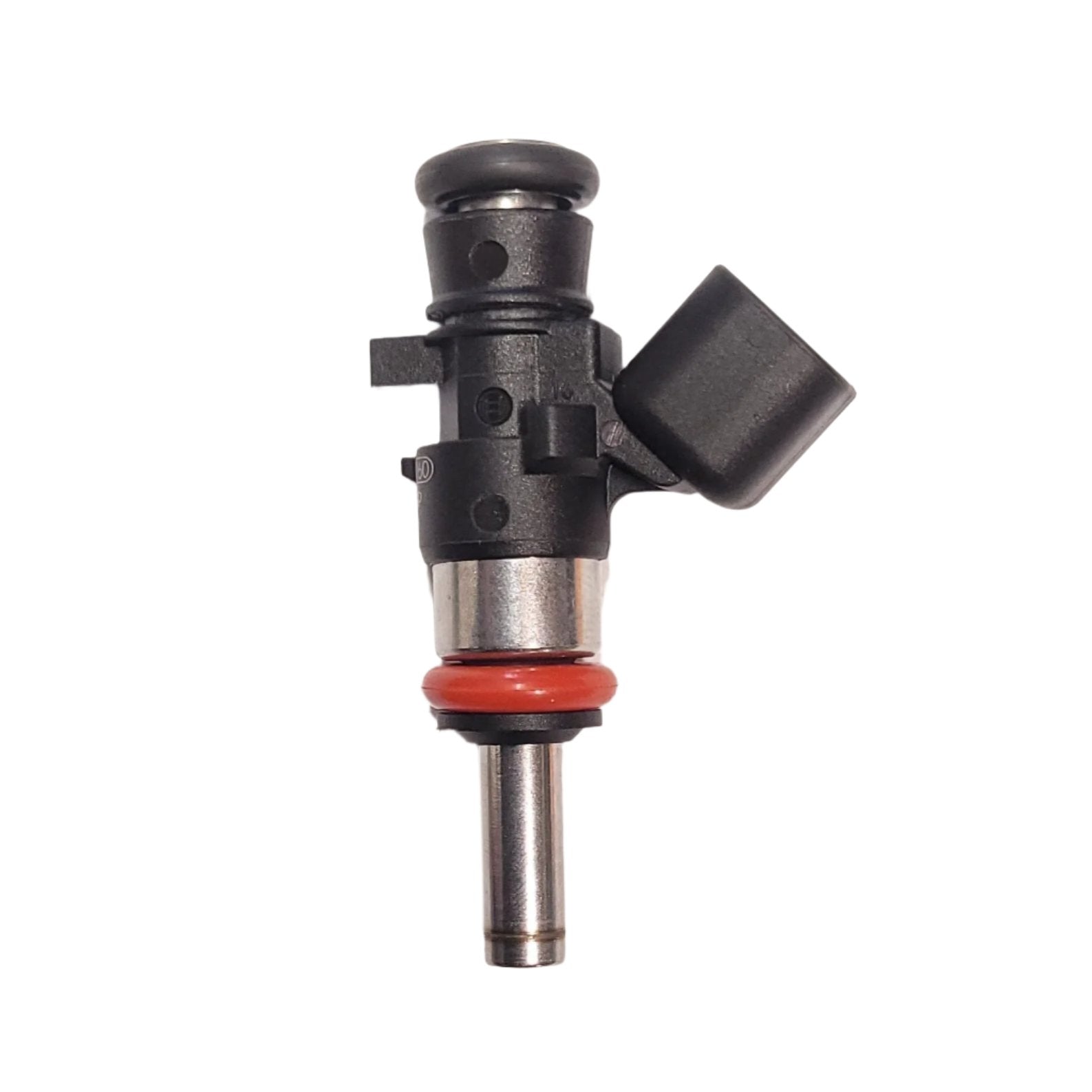

• 34/38mm- short no adapters (for LSA, LS9, & LS3 applications)
• 48mm- single short height adapter (for LS2 applications)

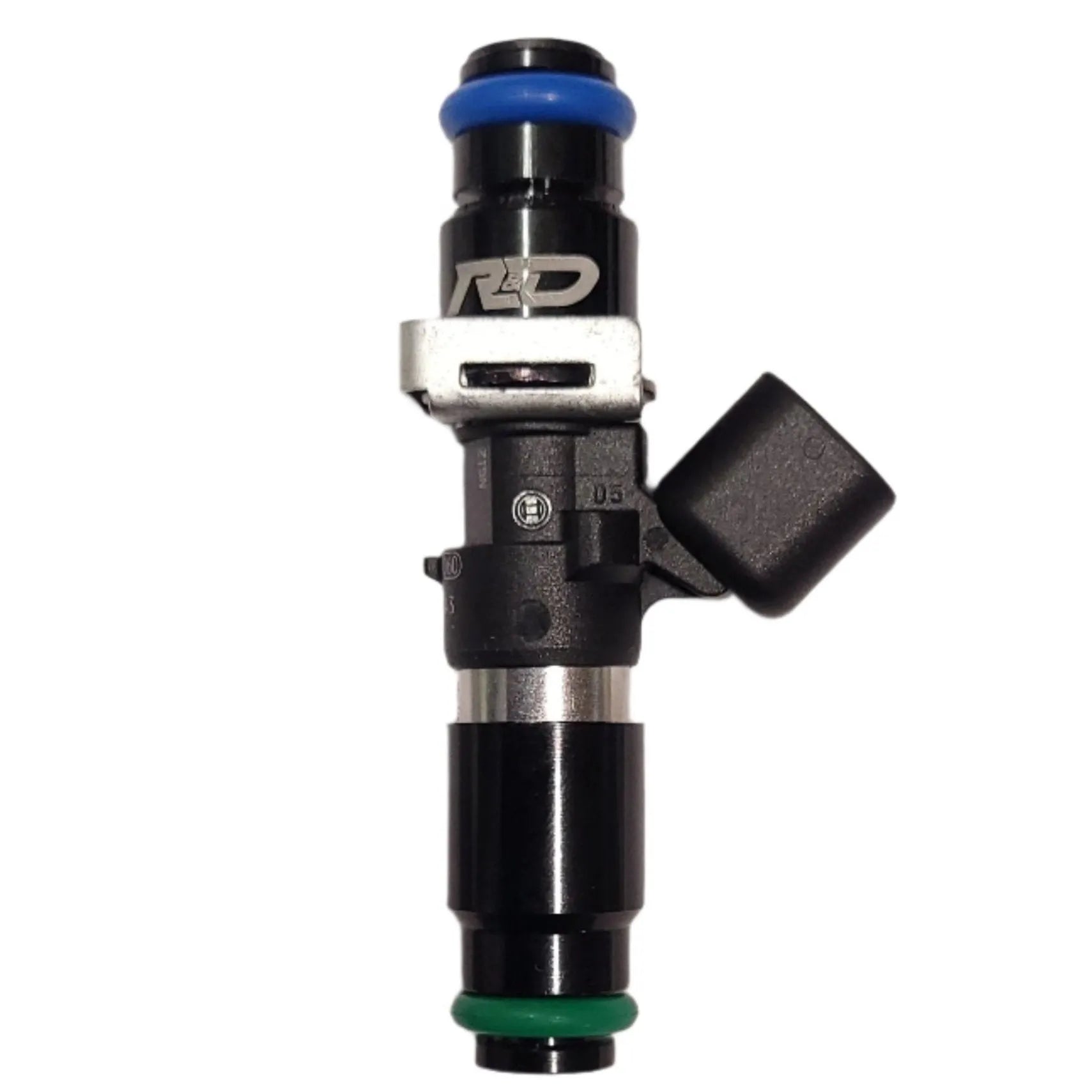

• 60mm- single long adapter or short top and bottom adapters (for LS1 applications)

Compatible with stock and aftermarket rails.

Note: All high-performance fuel injectors are intended for off-road use only!
