2024 LT4 GM Performance Parts Wet Sump Crate Engine w/ Holley Mid Mount Drive Kit Sale

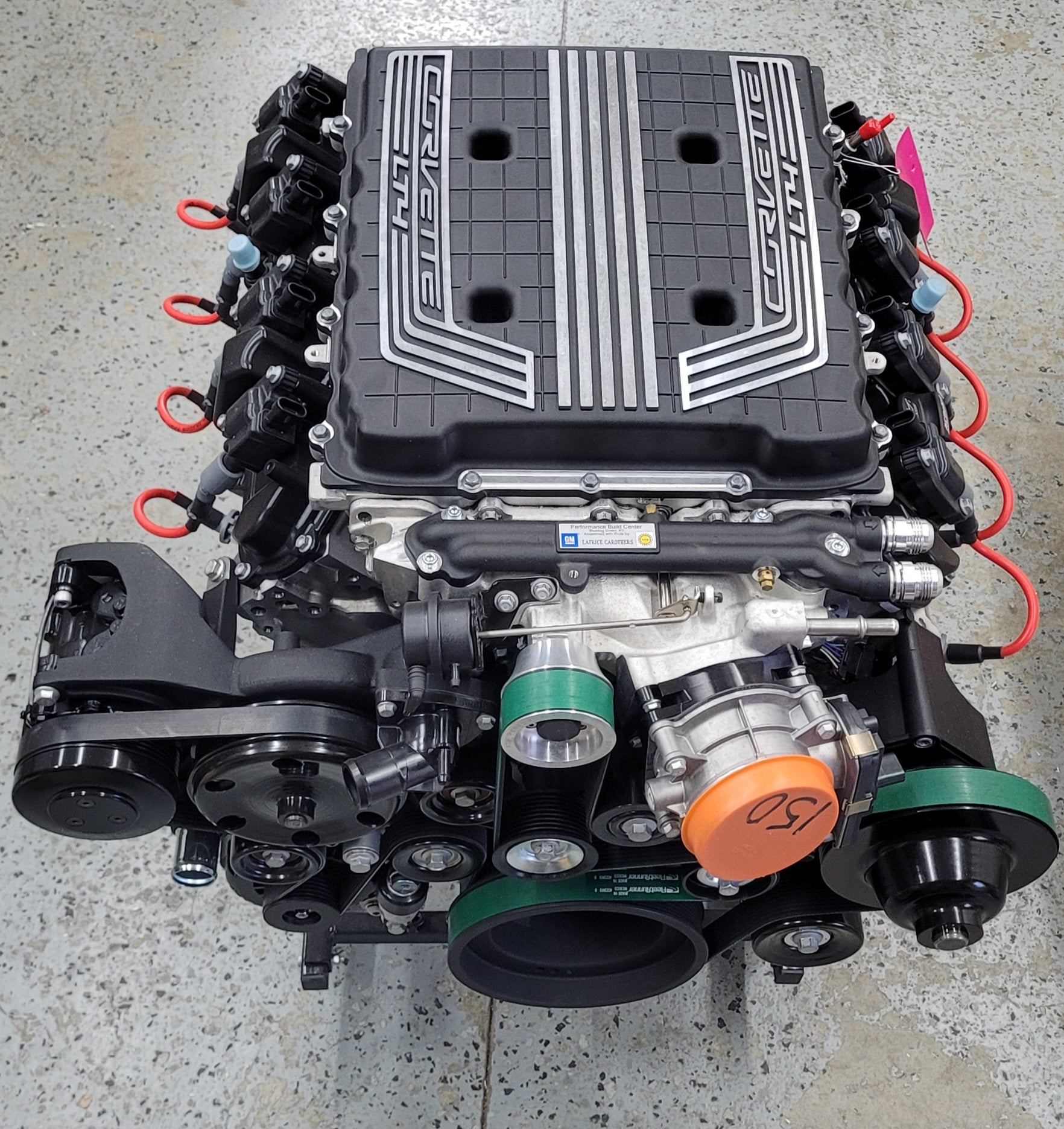

2024 LT4 GM Performance Parts Wet Sump Crate Engine w/ Holley Mid Mount Drive (PLEASE NOTE THAT ENGINE MAY BE DIFFERENT FROM AS SEEN)

PAYMENT VIA WIRE TRANSFER or Cash Pickup ONLY. CONTACT DIRECTLY TO MAKE WIRING ARRANGEMENTS AT 517-315-8940. *You will need to make sure you're not logged into shop and instead check out as guest to access wiring payment options.

The LT4 engine is a high-performance masterpiece, featuring advanced technologies like Direct Injection and Variable Valve Timing, first seen in the 2014 Corvette Stingray’s LT1 engine. This engine offers a perfect blend of performance and efficiency, making it ideal for high performance vehicles.

Supercharged Power from the C7 Corvette Z06! The supercharged LT4 6.2L SC, the most powerful engine in a regular-production Chevrolet, includes an efficient and compact 1.7L Eaton R1740 TVS supercharger that spins up to 20,000 rpm. This generates over 9 pounds of boost, producing 650 horsepower and 650 lb.-ft. of torque.

The LT4 is built on the same Gen V Small-Block architecture as the LT1 engine, but with several unique features to support its higher output and the increased cylinder pressures created by forced induction. These features include, Rotocast A356T6 aluminum cylinder heads, which are stronger and handle heat better than conventional castings, lightweight titanium intake valves, stronger forged aluminum pistons.

Holley Black Mid Mount Drive

Custom Wet Sump Adapter Pulley and Hub

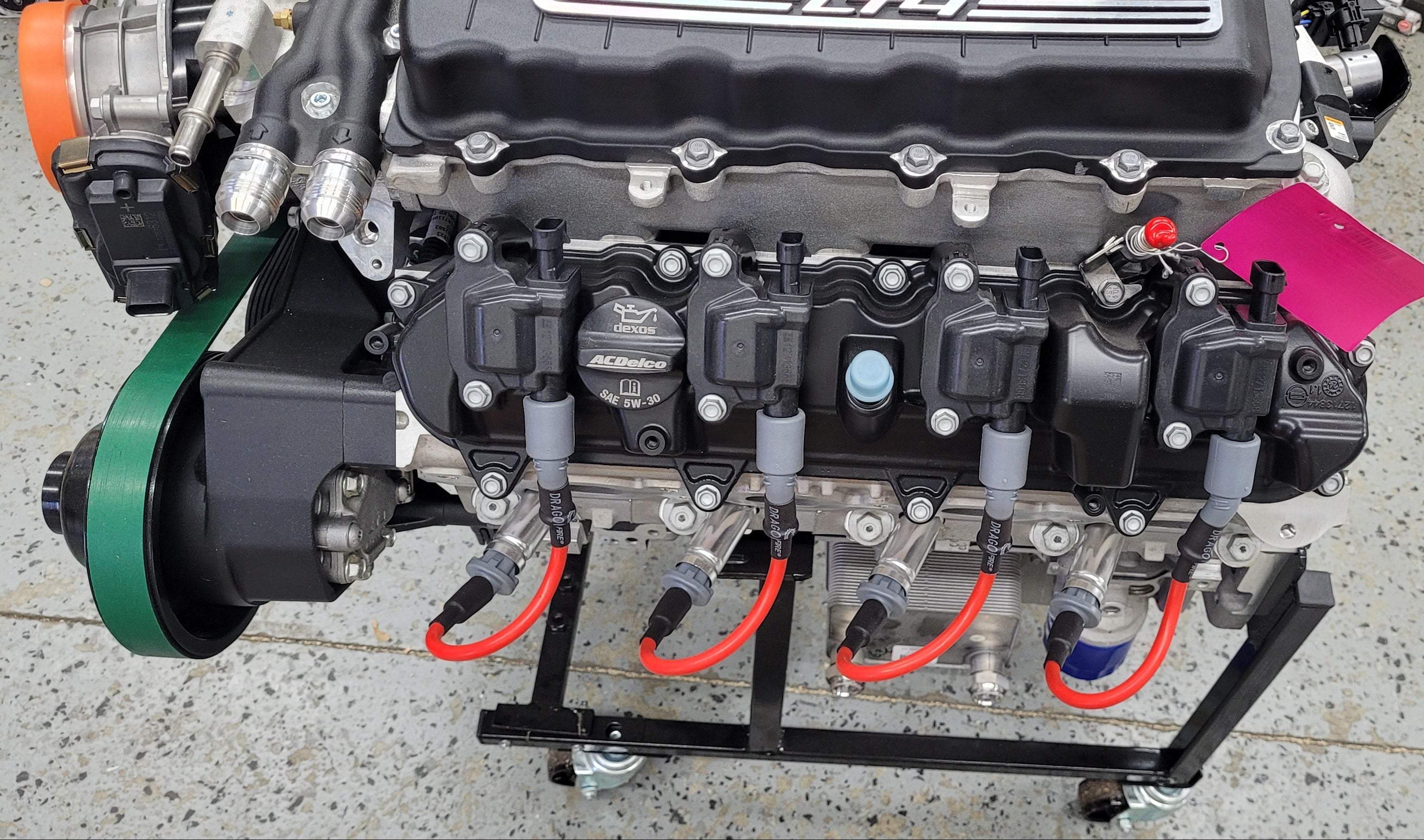

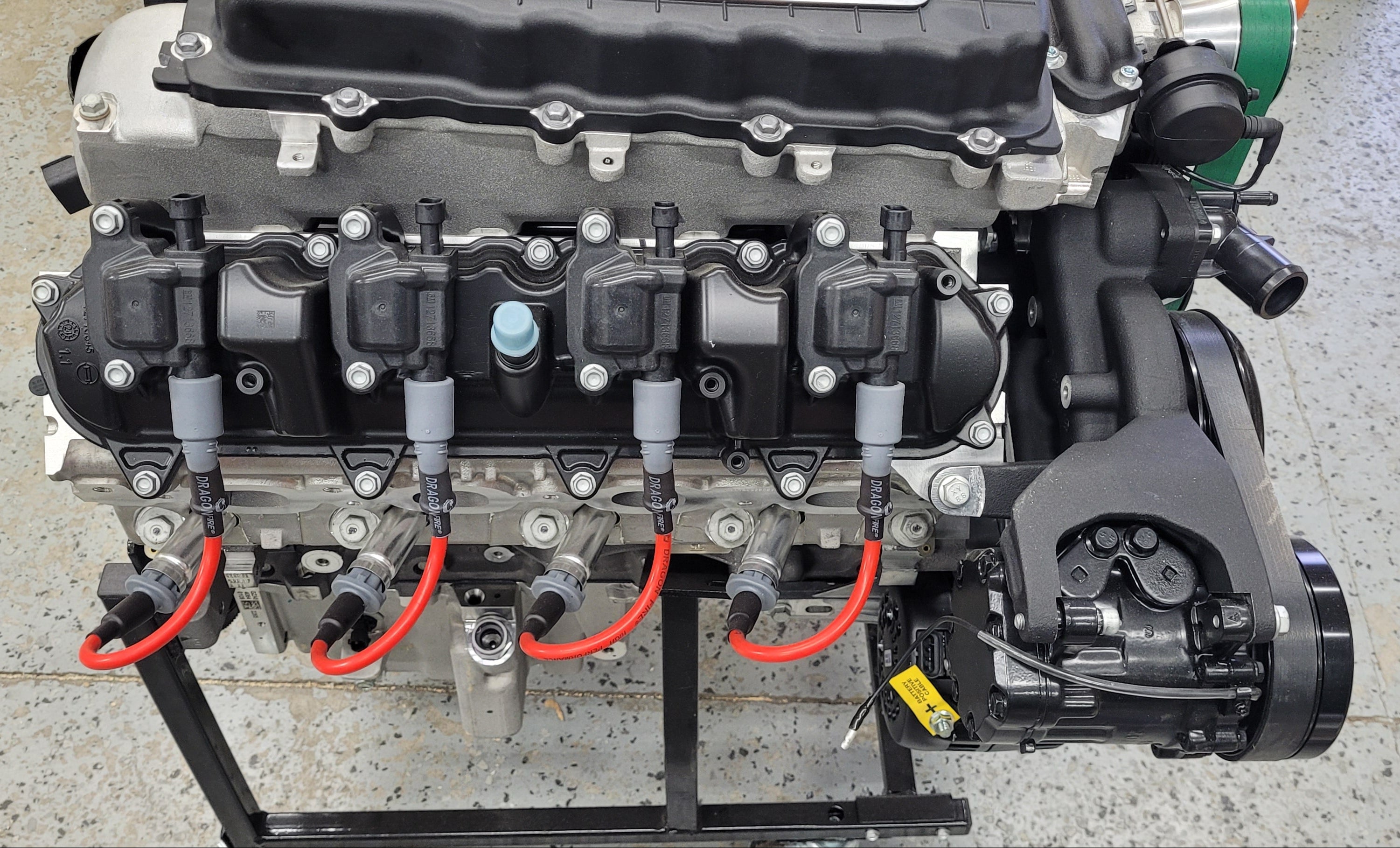

Black Coated Valve Covers (with ignition wires)

LT4 Injectors and Pump

Part Number: 19431955

Engine Type: Gen V Small-Block V-8

Displacement (cu in): 376 cu in (6.2L)

Bore x Stroke (in): 4.065 x 3.622 (103.25 x 92mm)

Block: Cast aluminum with 6-bolt, cross-bolted main caps

Crankshaft: Forged steel Connecting Rods: Forged powdered-metal steel

Pistons: Forged aluminum

Camshaft Type: Hydraulic roller

Valve Lift (in): 0.492 intake / 0.551 exhaust

Camshaft Duration (@0.050 in): 189° intake / 223° exhaust

Cylinder Heads: A356T6 Rotocast aluminum; as cast with 65.5cc chambers

Compression ratio: 10:1

Rocker Arm Ratio: 1.81:1

Recommended Fuel: Premium pump

Maximum Recommended RPM: 6,600

Reluctor Wheel: 58x

Freight shipping $550-750
