Ported LSA Supercharged LSX 376-B15 Crate Engine w/ Billet Specialties Accessory Drive

$24,995.00
$24,995.00

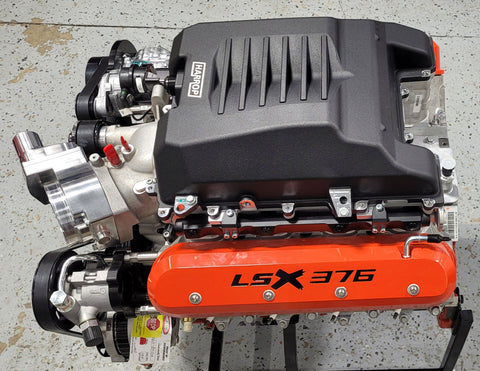

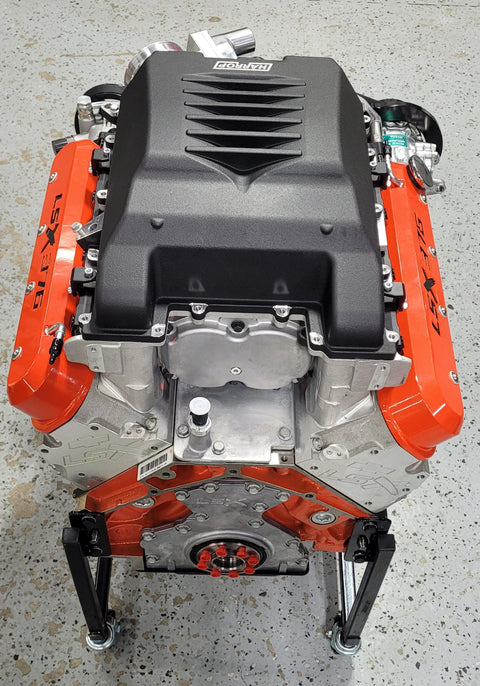

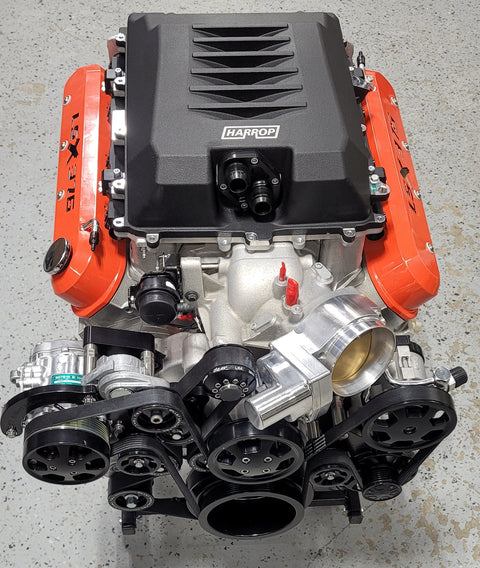

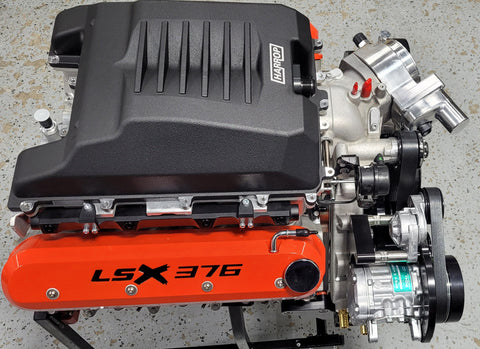

Ported LSA Supercharged LSX 376-B15 Crate Engine

DO NOT USE THIS CHECKOUT!

PAYMENT VIA WIRE TRANSFER or Cash Pickup ONLY. CONTACT DIRECTLY TO MAKE WIRING ARRANGMENTS AT 517-315-8940.

The LSX376-B15 is a versatile and robust engine, perfect for those looking to build a high-performance vehicle with the capability to handle significant boost levels. Its combination of durable components and high-performance design makes it a popular choice among enthusiasts.

Includes:

  • LSA Supercharger w/ CNC Ported Katech 103mm Inlet
  • Harrop High Flow Lid w/ -16an Fittings
  • Bosch Flow Matched 1050cc @ 43.5psi USCAR EV6 Fuel Injectors
  • Billet Black Harrop Fuel Rails
  • 103mm DBW Throttle Body
  • Billet Specialties Black Accessory Drive
  • ATI Balancer
  • ZPE Griptec 2.45 Harrop Upper Pulley
  • Belts Included
  • Snout Plugs
  • Solid Isolator Installed

Technical Specs:

  • Engine Type: LSX-Series Gen IV Small-Block V-8

  • Displacement: 376 cubic inches (6.2 liters)

  • Bore x Stroke: 4.065 x 3.622 inches (103.25 x 92 mm)

  • Block: LSX cast-iron with 6-bolt, cross-bolted main caps

  • Crankshaft: Forged steel

  • Connecting Rods: Forged powdered metal

  • Pistons: Forged aluminum

  • Camshaft Type: Hydraulic roller

  • Valve Lift: 0.560 inches intake / 0.555 inches exhaust

  • Cylinder Heads: LSX-LS3 rectangular port with 6-bolt attachment

  • Compression Ratio: 9.0:1

  • Maximum Recommended RPM: 6,600

  • Recommended Fuel: Regular pump

  • Boost Support: Up to 15 pounds of boost

Prices:

Freight shipping $450-650
