Fuel Injector Clinic

540cc (60 lbs/hr at OE 58 PSI) Fuel Injector Set for LS3, LS7, LSA, L76, L92, and L99 engines (High-Z)

$625.00
$625.00

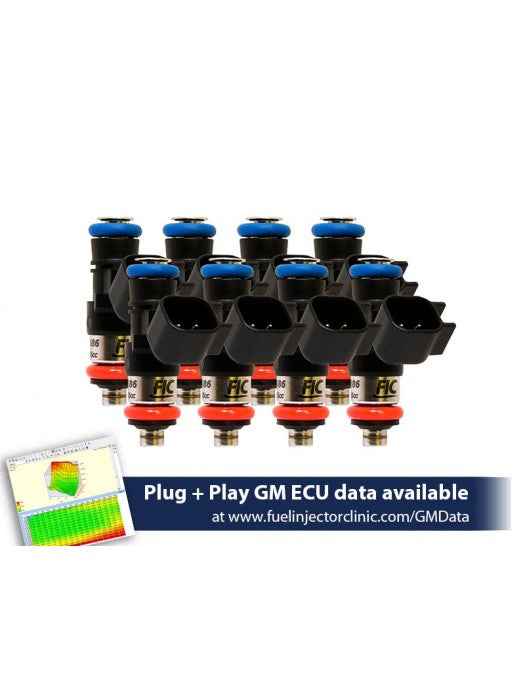

(Set of 8 Fuel Injectors)

LS3, LS7, LSA, L76, L92, L99 Fuel Injector Clinic Injector Set: 8x540cc/min (52lbs/hr) at 3 bar (43.5psi) fuel pressure and 60lbs/hr (625cc/min) at OE 58psi (4 bar) fuel pressure. Saturated / High Impedance Injectors. Drop in plug fitment! These injectors utilize the latest technology and provide great linearity and short pulse width repeatability. Plug and Play GM ECU Data available on our website.

Fuel Injector Clinic's high performance fuel injector sets are precisely flow matched to within 1%. Each injector within each set is individually numbered and results for each injector are listed on a detailed flow sheet included with the set.

Fuel Injector Clinic's high performance fuel injectors are flow tested and rated at 43.5psi (3Bar) at 90 degrees F fuel temperature using CF-16B calibration fluid.

Superior short pulse width control and tight manufacturing tolerances make these injectors easy to tune and provide great drivability.

Fuel Injector Clinic injectors are set up to and include all o-rings needed to fit the factory application for the listed vehicle.


Every injector is covered against failure caused by defects in original manufacture by our lifetime warranty.

Fitment Specifications
Bottom O-ring Outer Diameter 15mm O-ring
Cylinder Quantity 8
Height 38mm
Impedance High-Z
Top O-ring 14mm
