AEM Universal High Volume Fuel Filter

AEM Universal High Flow 10 AN Inline Fuel Filter

AEM’s Universal High Flow 10 AN Inline Fuel Filter is designed for performance and reliability. Built for high demand fuel systems, it delivers maximum flow without giving up filtration efficiency and installs easily in almost any setup.

The precision machined end caps feature 10 AN female fittings and are capable of flowing up to 12.32 gallons per minute at 45 PSI and 2.63 gallons per minute at 6 PSI. Each end cap includes a machined O ring receiver groove for a leak free seal. All O rings and gaskets are made from Viton for excellent chemical resistance when used with gasoline, alcohol, or blended fuels.

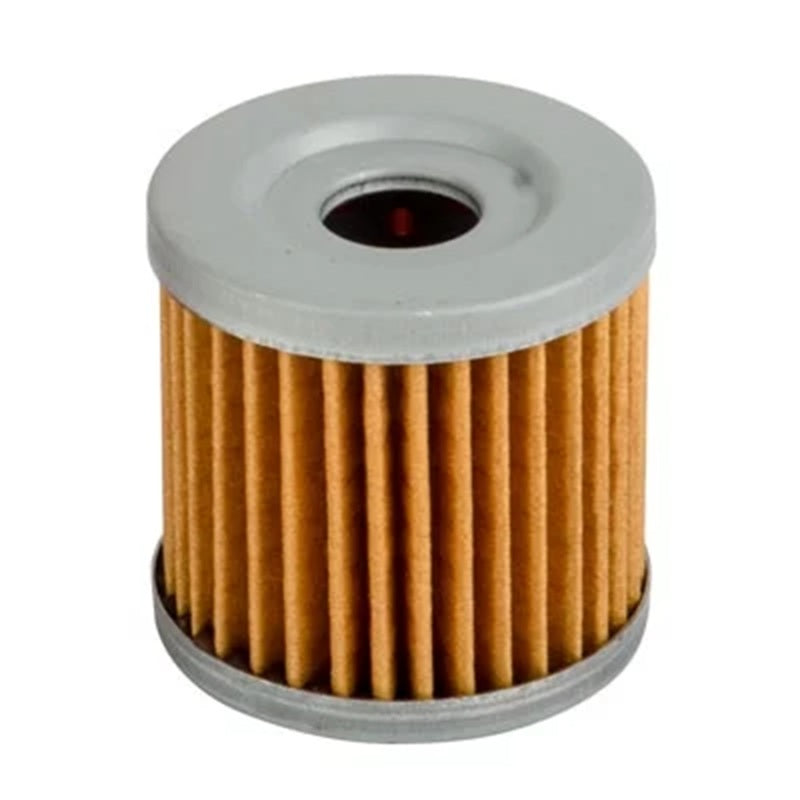

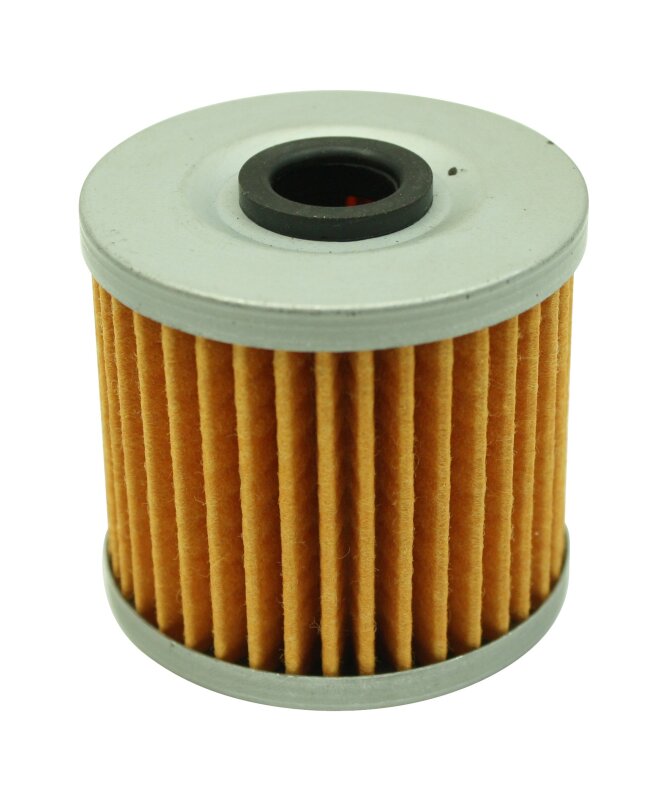

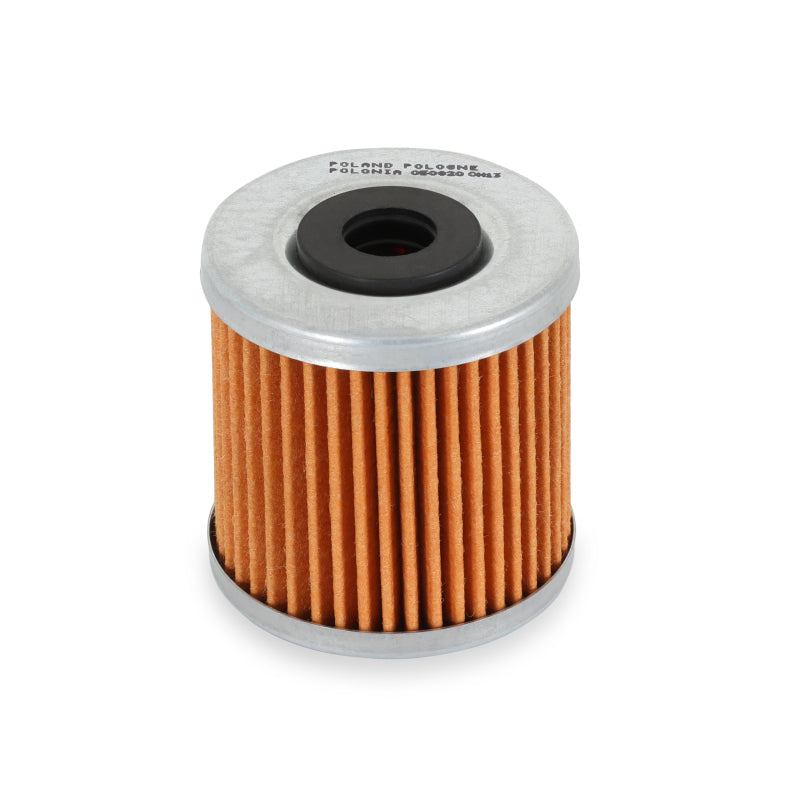

Replacement filter cartridges are easy to source and trap particles as small as 7 microns. The standard 2" outer diameter makes mounting simple in any vehicle and allows quick access for servicing.

Features
• Flows up to 12.32 gallons per minute at 45 PSI and 2.63 gallons per minute at 6 PSI
• Filters particles as small as 7 microns
• CNC machined from 6061 T6 aluminum with a black hard anodized finish

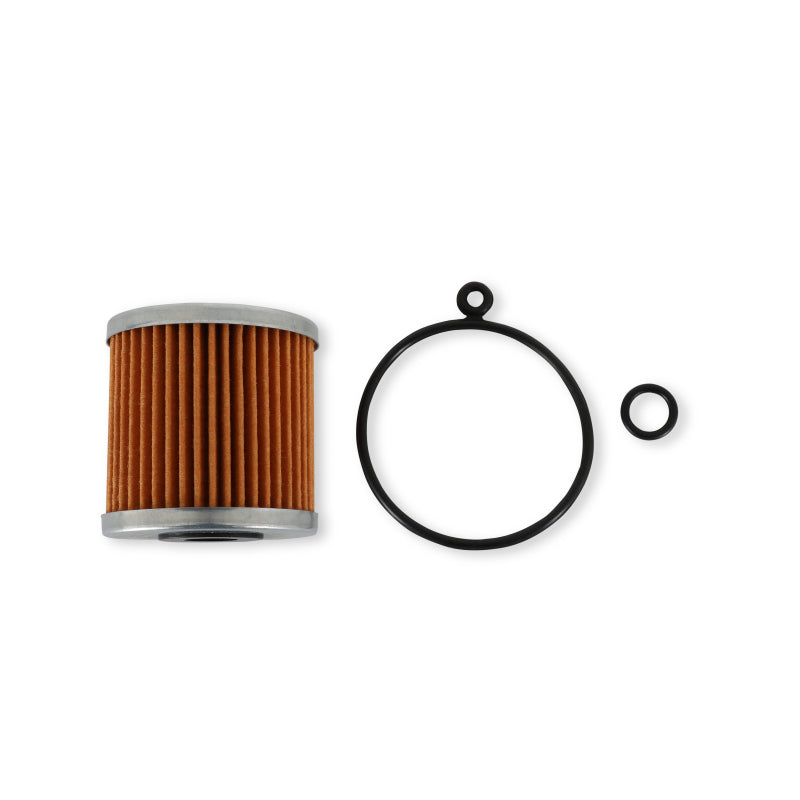

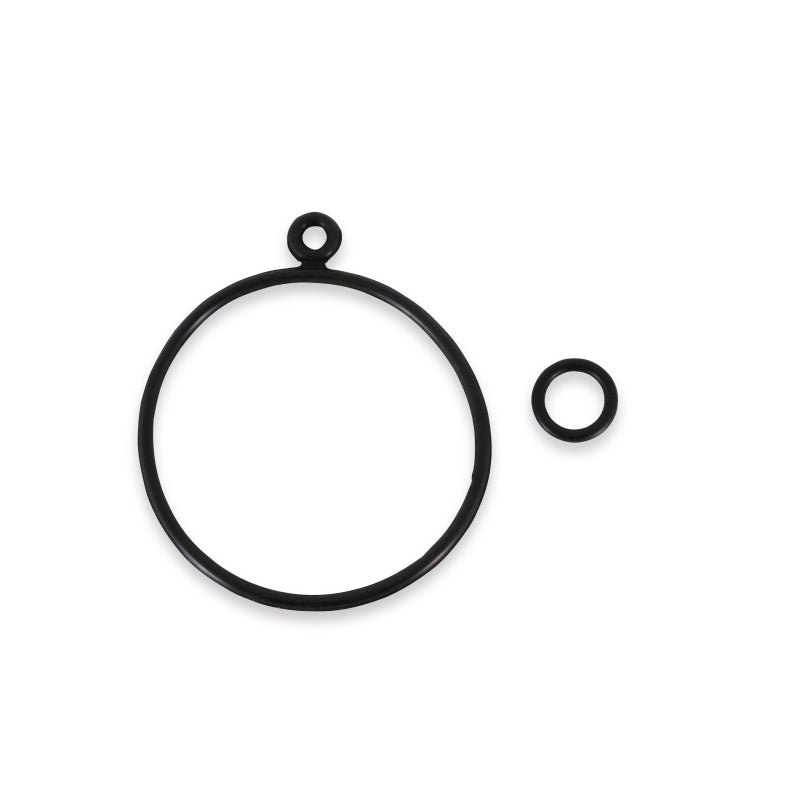

• Viton O rings and gaskets for use with gasoline, alcohol, or blended fuels
• End caps feature 10 AN female fittings with O ring receiver grooves
• Pressure intensifiers in end caps improve sealing performance
• 2" outer diameter and 10" overall length for flexible mounting
• Compatible with commonly available replacement filter cartridges
• Laser etched with AEM logo, flow direction, and filter replacement information
