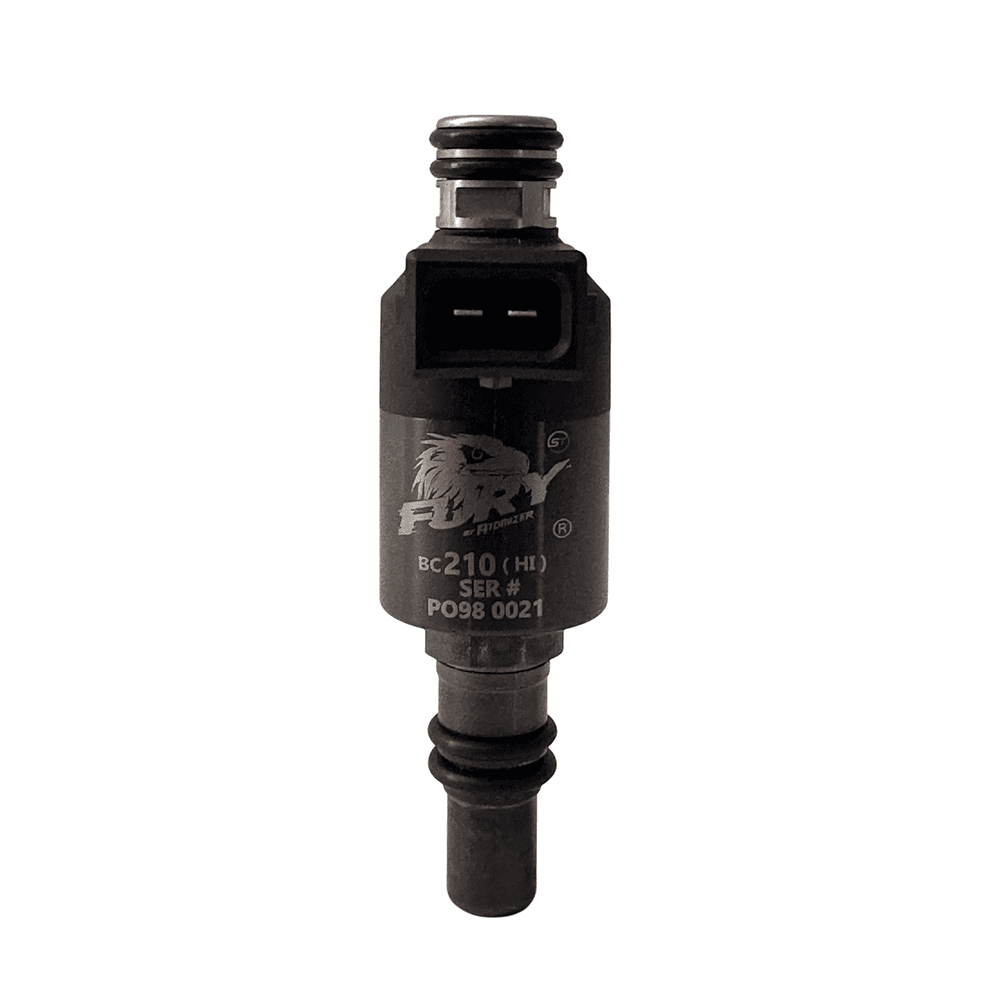

Atomizer BC 210 High Impedance Fuel Injector 2200cc/min @ 43.5 PSI

Atomizer BC 210 High Impedance Fuel Injector – 2200cc/min @ 43.5 PSI

The Atomizer BC 210 is a 2200cc/min high-impedance fuel injector built for high-performance and motorsport applications requiring stable, high-volume fuel delivery. Designed for use with gasoline, ethanol, and methanol, it is well-suited for turbocharged, supercharged, or high-compression naturally aspirated engines where injector control and repeatability are critical.

Constructed with a billet aluminum body, the BC 210 features a compact form factor optimized for intake manifolds with tight packaging. It includes a Bosch EV1 connector and dual Viton O-rings to ensure secure sealing and compatibility across a wide range of fuel rails and engine setups.

This injector uses Atomizer’s proprietary internal architecture, combining a high-speed solenoid and precision-machined internals for fast response times and consistent spray patterns. Each unit is individually flow-tested, serialized, and matched to ensure accuracy and uniform fuel delivery across all cylinders.

As a fully rebuildable unit, the BC 210 supports long-term serviceability, allowing it to be refreshed back to original specifications as needed—ideal for long-term racing programs or high-use environments.

Specifications:

• Flow Rate: 2200cc/min @ 43.5 psi

• Impedance: High impedance (saturated)

• Connector: Bosch EV1

• Body: CNC-machined billet aluminum

• Seals: Dual Viton O-rings (top and bottom)

• Fuel Compatibility: Gasoline, E85, Methanol

• Spray Pattern: Optimized for multi-fuel performance

• Serviceability: 100% rebuildable by Atomizer

• Matching: Individually flow-tested, serialized, and matched

Applications:
Suitable for professional motorsport, drag racing, street/strip builds, and high-output forced induction systems requiring stable and precise high-flow fueling.
