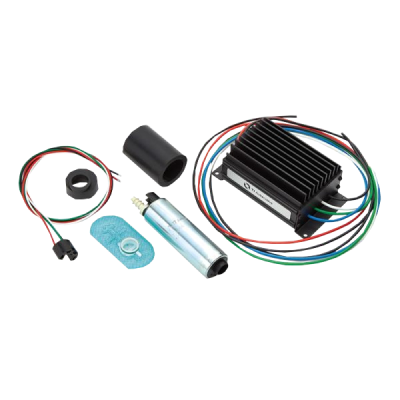

Brushless 550Lph fuel pump kit 1000 crank / 800 whp

Efficient screw pump design with positive displacement that is designed for in-tank installation. The brushless controller logic uses a simple power and ground. The pump output is set to 100% duty cycle for maximum performance.

All sealed weather resistant electronics with 3ft wiring leads. Includes a 31 micron inlet filter.

Features:

• 550+ LPH @ 13.5V/40 psi
• Capable up to 1000+ HP / 800 whp
• High flow, High pressure
• Reduced Noise (pump is louder at 100% duty cycle)
• Suitable for both naturally aspirated and boosted applications

Controller wires power in Red wire +12V power in supply

Black wire – Ground

Orange wire - PWM control (cannot control with Hobbs switch, unlike older versions the BKS1001-4) leave disconnected for 100% duty cycle.

simple PWM controllers from Amazon work well for non aftermarket ecu’s.

Controller wires power out to pump         Pump wire harness

Blue wire – Phase 1 to pump                    Red

Green wire – Phase 2 to pump                 Green

White wire – Phase 3 to pump                  White

Black wire – Ground                                   Black
