BTR PDS STAGE 2 TORQUE CAMSHAFT

BTR PDS STAGE 2 TORQUE CAMSHAFT

221/24X, .619/.617, 113 LSA

INTAKE LOBE LIFT @ TDC: 0.04730

This new version of Stage 2 PDS camshaft makes more power and torque everywhere in the curve compared to our legendary PDS cams. Developed in house, we went back to the drawing board and found more power and torque even with the use of less intake duration. These new BTR lobe designs were Spintron and Engine Dyno tested to achieve the highest overall power curve while also maintaining strict valvetrain stability and durability standards.

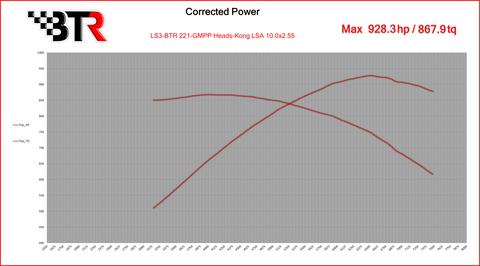

E85 fuel is highly recommended. The dyno sheet below was with a LS3 short block, GMPP ported LS3 heads, Kong ported LSA supercharger. 17psi boost, E85 fuel. Tested in house on BTR's Superflow dyno.

Features:

BTR SKU- BTR-PDSSTAGE2TQ

Length- 24.000000

Width- 3.000000

Height- 3.000000

Weight- 15.000000

Brand- Brian Tooley Racing

Part Type- Camshaft

Engine Type- Gen III/Gen IV LS

Engine Combination- SUPERCHARGED - ROOTS

Camshaft Style- HYDRAULIC ROLLER

Cam Bolt Style- THREE BOLT
