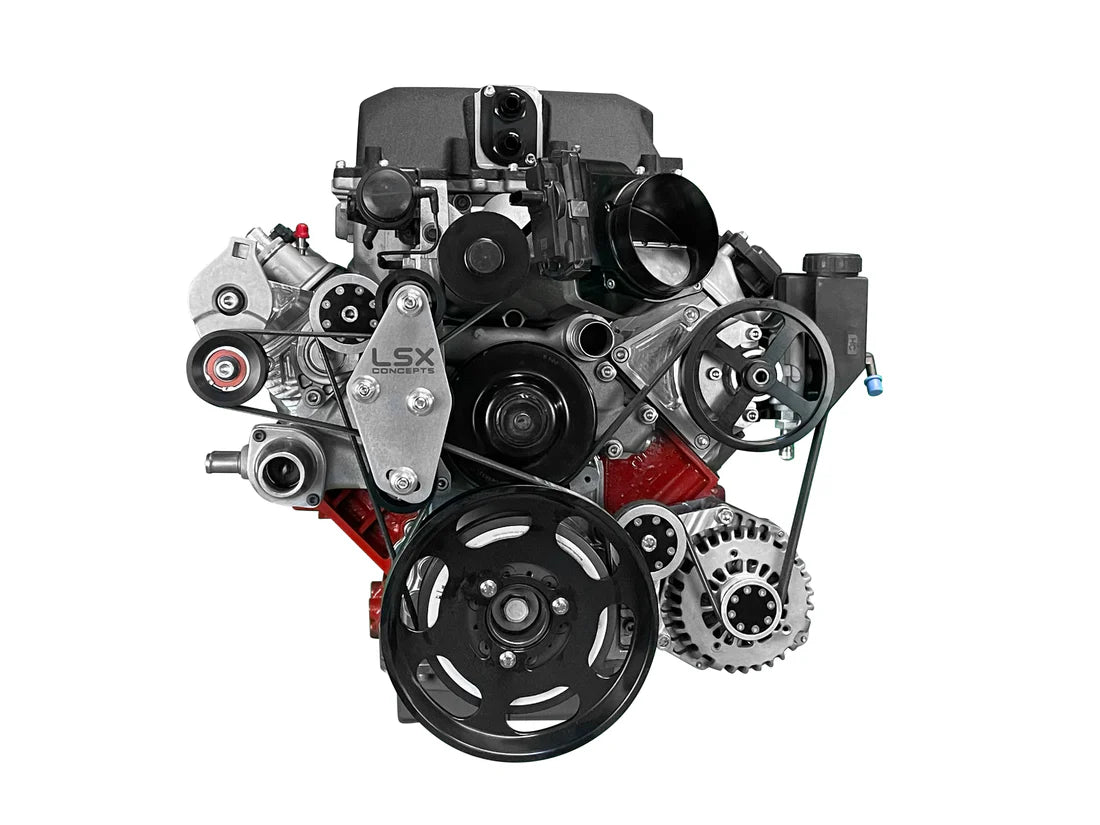

OE Triple Idler LSA Drive kit 8/10/12 Rib - Low Mount ALT/PS/OE

(0)
$1,394.00

Designed to run LSA Direct Drive superchargers with the LSA offset while keeping the low mount accessories in place. This setup uses a coupler style drive and supports the major LSA based units including:

Factory LSA
KONG 2650
Magnuson Gen2 2650
Harrop 2650i
Magnuson Heartbeat 2300

Works with any overdrive combo using up to a 10.00 lower pulley
Fits most early muscle cars with no frame changes

Base Bundle Includes:

OE Triple Idler Mount for blower drive

OE LSA flex drive tensioner bracket Indexable*

Low mount alternator

Mid mount power steering bracket

64mm LSA tensioner pulley in 8, 10, or 12 rib

All other bundle parts are optional

Installation Requirements (NOT INCLUDED IN BASE BUNDLE):

Upper supercharger pulley
ATI Super Damper
Supercharger crank pulley
Supercharger serpentine belt
LSA or LS3 water pump
Remote power steering reservoir

Recommended Power Levels

8 rib up to 800 HP
10 rib 800 to 1,000 HP
12 rib 1,000 + HP



*Does not include AC. However you can select a holley 20-160 low ac kit to work with this kit.

*Does not work with Hellcat superchargers*
