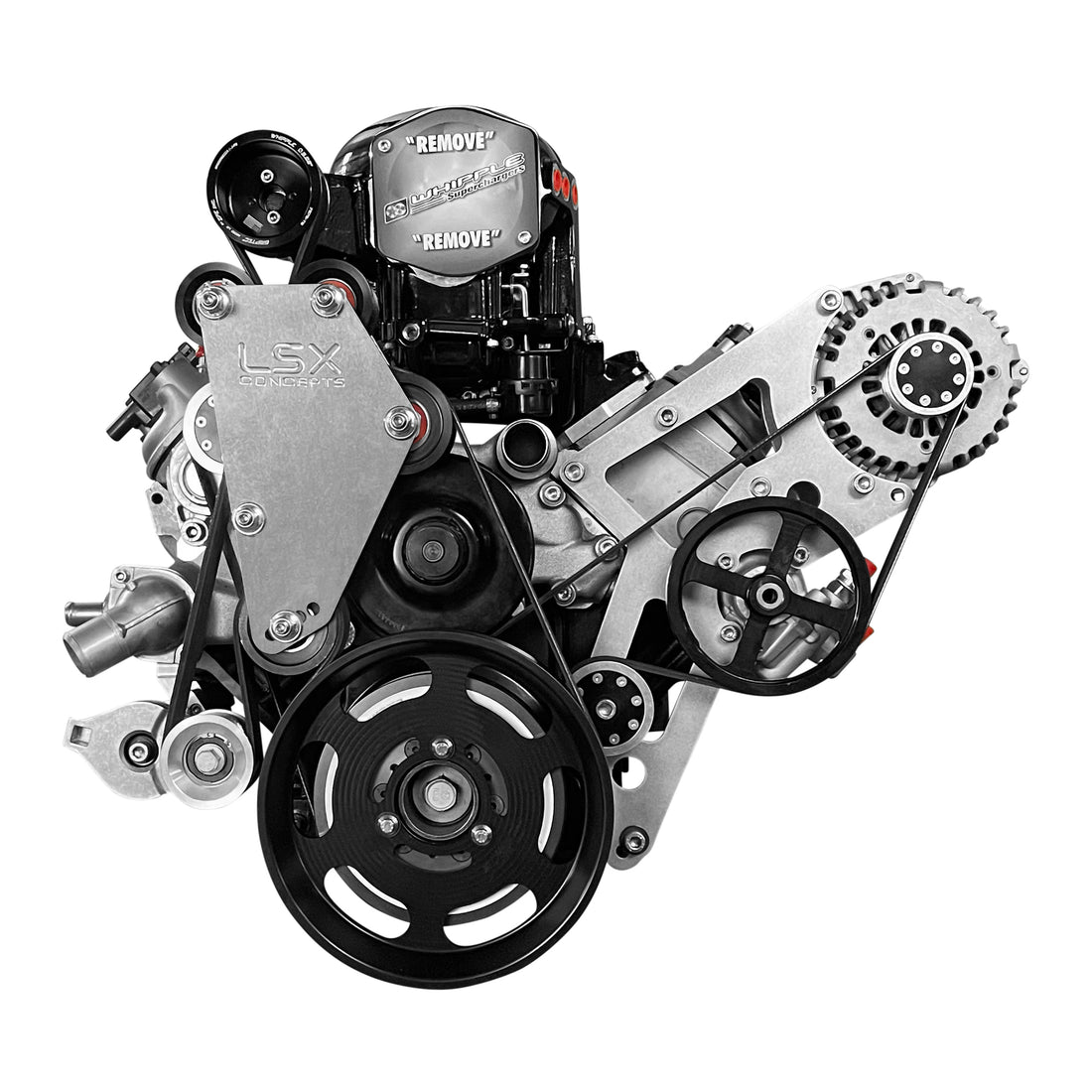

PROTOTYPE PICTURED FINAL PRODUCT WILL VARY IN APPEARNCE
LSA Supercharger Flex Drive Accessory System Bundle
Designed to drive Jackshaft Style Superchargers with LSA Offset
- Magnuson Hot Rod 2650
- 2.9 Universal WK-1810 Whipple with C/Z-Body (10+ Gen 5 Camaro) offset Supercharger (with our custom offset pulley which changes it to LSA offset)
-
Features:
- Computer Designed, Water jet profiled and CNC precision milled and drilled brackets from 6061-T6 billet aluminum
- The only High Mount A/C solution for Muscle cars using a 10 Rib serpentine belt to drive the supercharger using a factory style tensioner
- Installs with no frame modifications on 60's/70's Muscle Cars
- Compatible with any overdrive combination with up to a 10.00 lower pulley
Installation Requirements (NOT INCLUDED IN KIT)
- Supercharger Pulley (Hot Rod / Whipple)
- ATI Super Damper
- Supercharger Crank Pulley
- Supercharger Serpentine Belt
- LSA/LS3 Water Pump
Additional Installation Requirements for the Whipple WK-1810
- 1/2 Manifold spacers required for the Whipple WK-1810 (supercharger has to be raised to clear the LSA/Zl1 water pump)
- Custom LSA Offset Pulley
Included in Bundle:
- Flex Drive System (jackshaft Drive)
- LSA Tensioner with 64MM Tensioner Pulley
- Alternator / Power Steering Bracket
- GM 6 Rib Belt Tensioner
- GM Alternator
- Power Steering Pump with Pulley
- 6 Rib Serpentine Belt (6PK1940)
Recommended Power levels
- 10 Rib - Up to 1000HP
- 12 Rib 1000+HP
