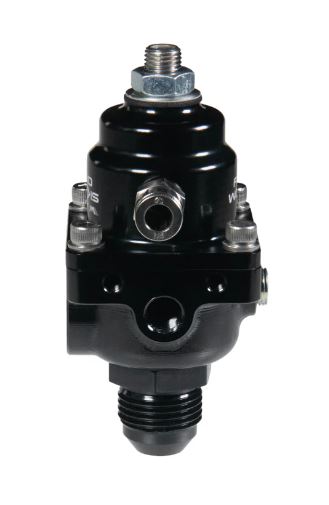

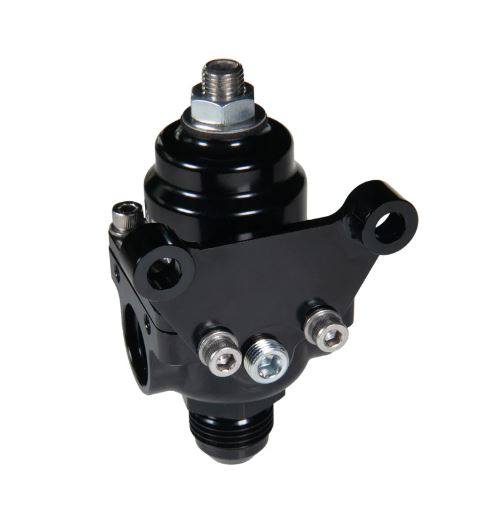

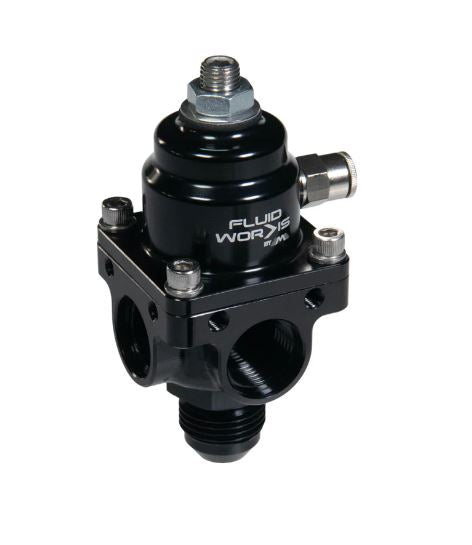

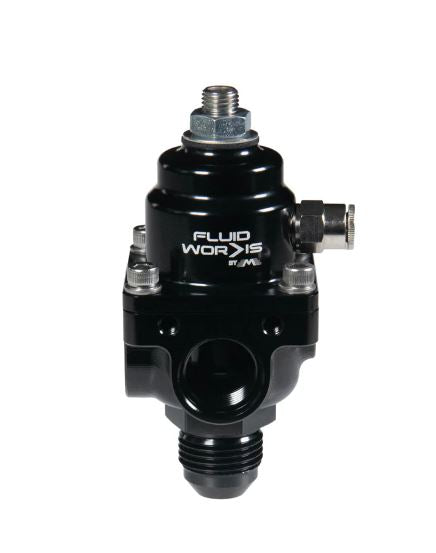

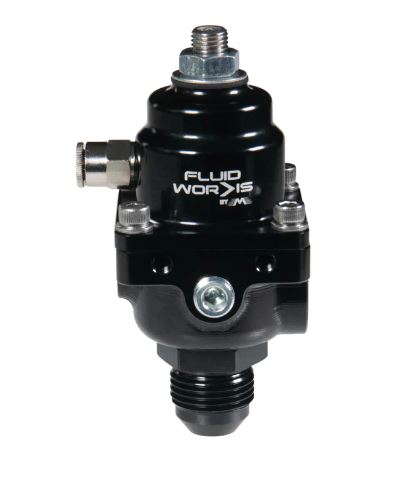

Fluidworks 3-6 gpm Fuel Pressure Regulator 35-70 psi 90 Degree Fittings

Fluidworks 3-6 gpm Fuel Pressure Regulator 35-70 psi 90 Degree Fittings 27-184

Fluidworks innovative new fuel pressure regulators utilize an innovative needle and seat vent to control fuel bypass in a highly stable and consistent manner dynamically.

Features:

• Compatible with 3-6GPM fuel pump setups
• Black Anodized Exterior
• Can be used as Boost Reference or Atmospheric reference
• 1/8" NPT Female Reference Fitting

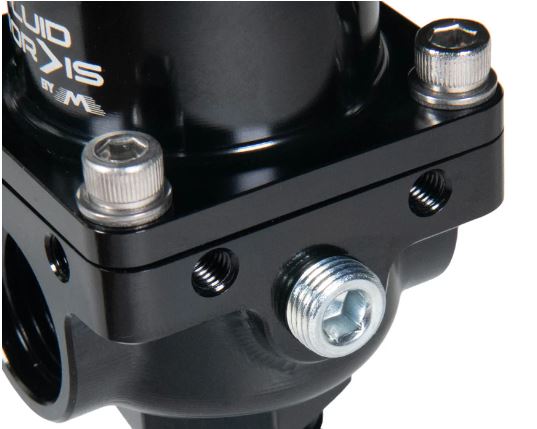

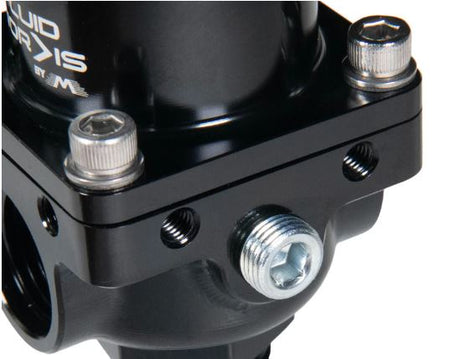

• (2) 1/8" NPTF Fuel Pressure Reference Ports for use with mechanical gauge and/or pressure transducer
• Methanol Compatible Diaphragm
• Made in the USA
• Tapered Needle and Seat Vent Relief
• Bypass Regulator

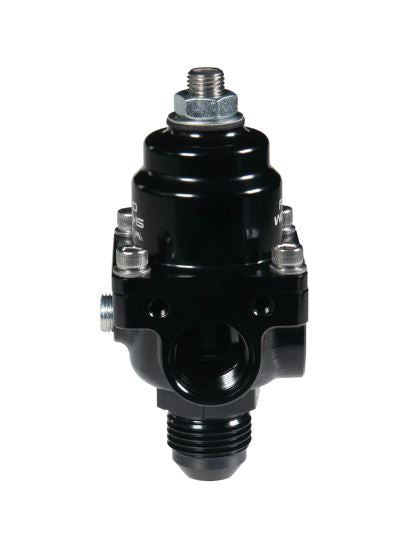

• (2) -8orb female 180 degree opposed inlet fittings
• Built in -8AN or -10AN return fitting (choose at checkout)
• Designed to be used in 35-70psi adjustable base pressure

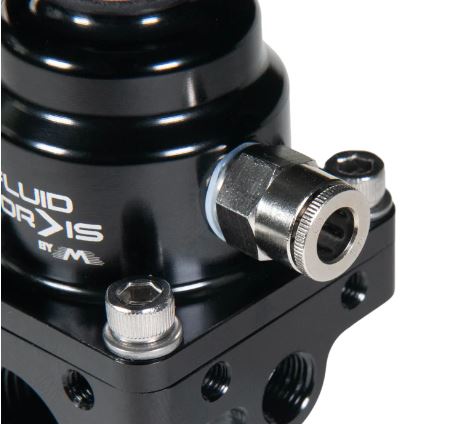

• Includes 1/8" NPT to 1/4" P2C hose fitting

Note: Due to potential internal disruption, please make sure if using a reference line fitting other than that supplied, caution is taken to make sure the fitting is not too long causing spring bind when screwed into fuel pressure regulator housing.
