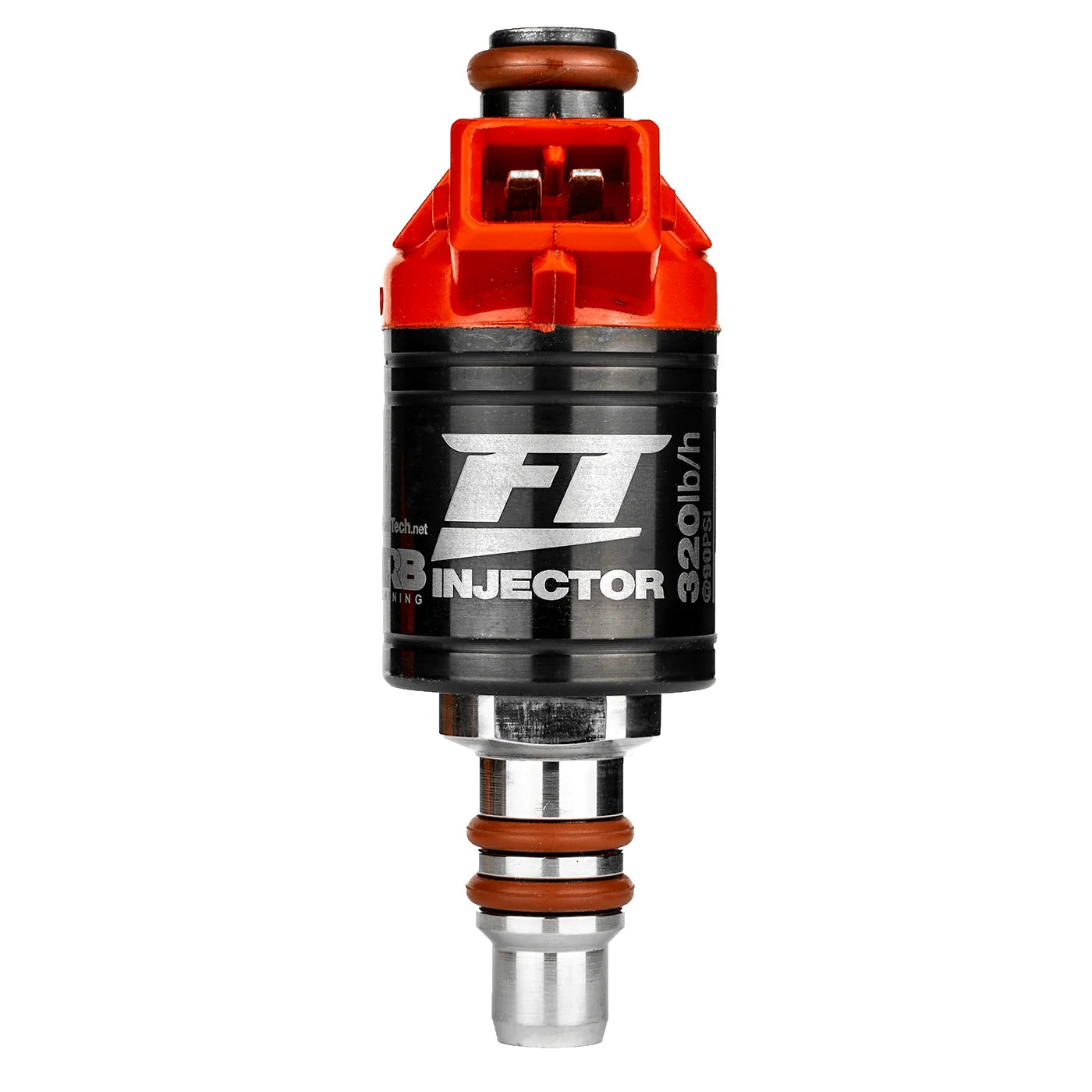

FuelTech Injector 320 lb/h Low Impedance

DESCRIPTION

Injectors come in the following options: Single, set of 4, or set of 8.

The FT Injector 320 lb/hr (2,226 cc/min @ 43.5 psi) is a low impedance, 1.5 Ohms, fuel injector from the FT Injector family. A Peak & Hold Driver, such as the 8A/2A Peak and Hold Driver or Peak and Hold PRO Injector Driver, is required. FT Injectors are compatible with any ECU and all available fuels (gasoline, ethanol, alcohol, nitromethane, nitropropane, MTBE and ETBE). Featuring EV1 connectors with silver plated terminals for superior conductivity and corrosion resistant internal components.

FEATURES

• REAL flow, all injectors are tested, and calibrated to ensure linearity, repeatability and accuracy for all cylinders
• It has internal components resistant to corrosion, guaranteed by the salinization test carried out on all raw material used
• Reduce the number of injectors, connections and hoses in your project;
• Compatible with any type of fuel (Gasoline, Ethanol, nitromethane, nitropropane, MTBE and ETBE)
• Tested and approved on +4,000 horsepower engines
• Compatible with any ECU on the market
• Use outputs from your ECU (by reducing the number of injectors)
• Fuel Tech warranty and support
• Project developed prioritizing the quality and durability of the injector

TECHNICAL DESCRIPTION

• Low impedance: 1.5 Ohms
• It is necessary to use an 8A/2A Peak and Hold driver
• Voltage limit: up to 24V

DIMENSIONS:

• Injector: 86 x 32 mm
• Packing: 223 x 162 x 60 mm
• Shipping packaging dimensions: 225 x 250 x 65 mm

WEIGHT: 160g

PRODUCT CONTENT:

• FT Injector(s)
• 1 Manual

WARRANTY: 90 days
