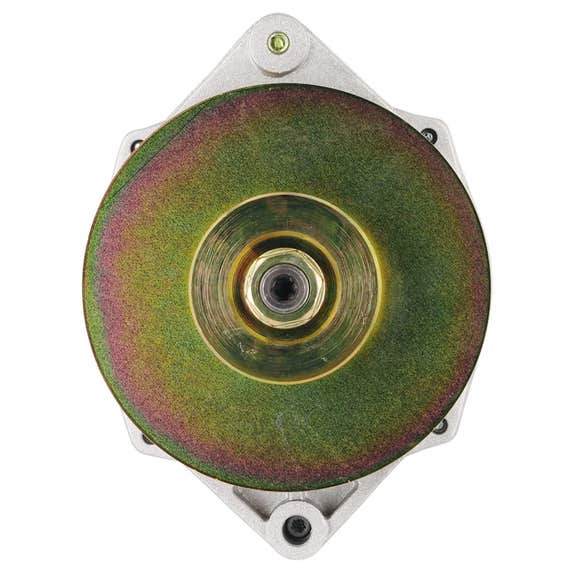

GM 12si-Style 150 Amp Alternator, V-Belt Pulley
GM has offered several series of alternators over the years, each time taking a step up in performance. The great thing about these alternators and aftermarket brackets is that for the most part they are interchangeable. Starting with the externally regulated 10dn alternator of the 1960s and moving all the way to the CS130D alternator of late, aftermarket brackets with rod end tensioners will interchange. The 2" mounting foot width is common to all of them and the 6.61" bolt spacing is common (except the CS130D has 7.24" bolt spacing, which many brackets accommodate). Race Prepped Alternators feature a balanced rotor for high rpm applications.
Features:
GM has offered several series of alternators over the years, each time taking a step up in performance. The great thing about these alternators and aftermarket brackets is that for the most part they are interchangeable. Starting with the externally regulated 10dn alternator of the 1960s and moving all the way to the CS130D alternator of late, aftermarket brackets with rod end tensioners will interchange. The 2" mounting foot width is common to all of them and the 6.61" bolt spacing is common (except the CS130D has 7.24" bolt spacing, which many brackets accommodate). Race Prepped Alternators feature a balanced rotor for high rpm applications.
Features:
- Natural
- 150 Amp
- 1v Belt Pulley
- Includes: Baffle
- 2" Mounting Flange
| Advertised Amperage Output | 150 amps |
| Alternator Brackets Included | No |
| Alternator Case Style | GM 12si |
| Alternator Finish | Natural |
| Amperage | 140 AMP |
| Belt Included | NO |
| Mounting | OEM |
| One-Wire Capable | Yes |
| Package Depth | 7.40 |
| Package Height | 9.30 |
| Package Width | 7.80 |
| Part Category | Performance Parts |
| Part Fitment | Direct Fit |
| Pulley Included | Yes |
| Pulley Style | V-Belt Pulley |
| Quantity | Sold individually |
| Regulator Included | Yes |
| Regulator Style | Internal |
| Shipping Weight | 14.04 |
| Vendor Part Number | 47294 |
| Voltage Compatibility | 12 |
