GM 12si Straight Mount 6.61" Race Prepped Alternators
GM has offered several series of alternators over the years, each time taking a step up in performance. The great thing about these alternators and aftermarket brackets is that for the most part they are interchangeable. Starting with the externally regulated 10dn alternator of the 1960s and moving all the way to the CS130D alternator of late, aftermarket brackets with rod end tensioners will interchange. The 2" mounting foot width is common to all of them and the 6.61" bolt spacing is common (except the CS130D has 7.24" bolt spacing, which many brackets accommodate). Race Prepped Alternators feature a balanced rotor for high rpm applications.

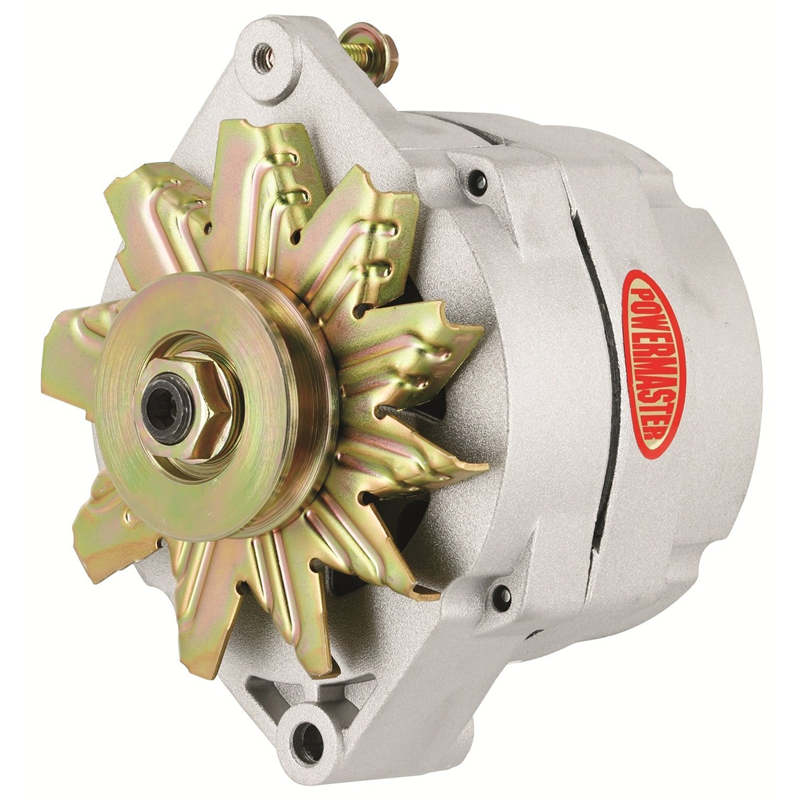

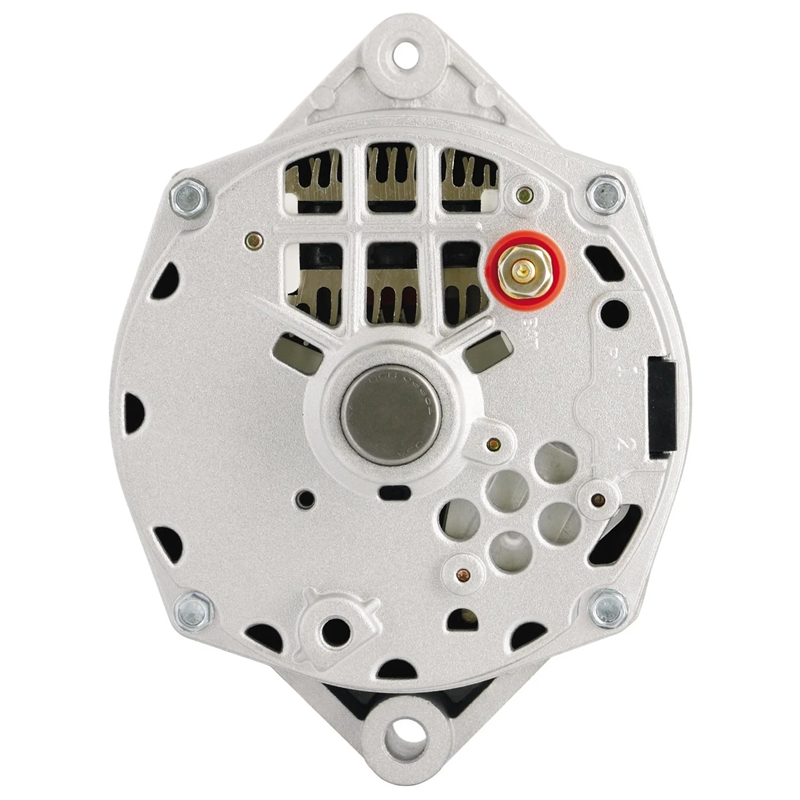

GM Delco-Style Alternator
- Natural
- 100 Amps
- 1v Belt Pulley
Specifications:
Advertised Amperage Output
100 amps
Alternator Brackets Included
No
Alternator Case Style
GM 12si
Alternator Finish
Natural
Amperage
100 AMP
Belt Included
NO
Mounting
OEM
One-Wire Capable
Yes
Package Depth
7.30
Package Height
9.30
Package Width
7.90
Part Category
Performance Parts
Pulley Included
Yes
Pulley Style
V-Belt Pulley
Quantity
Sold individually
Regulator Included
Yes
Regulator Style
Internal
Shipping Weight
13.30
Vendor Part Number
8002
Voltage Compatibility
12
