TVS2650 LS ENGINE KIT

Key Features:

• Utilizing the latest in Eaton TVS technology with 170-degree twist lobes

• 25 percent more airflow at 18,000 RPM and 14 psi boost than R2300

• High-efficiency water to air integrated intercooler system

• Integrated by-pass for improved drivability

• GM Factory and 102mm Aftermarket throttle body compatible

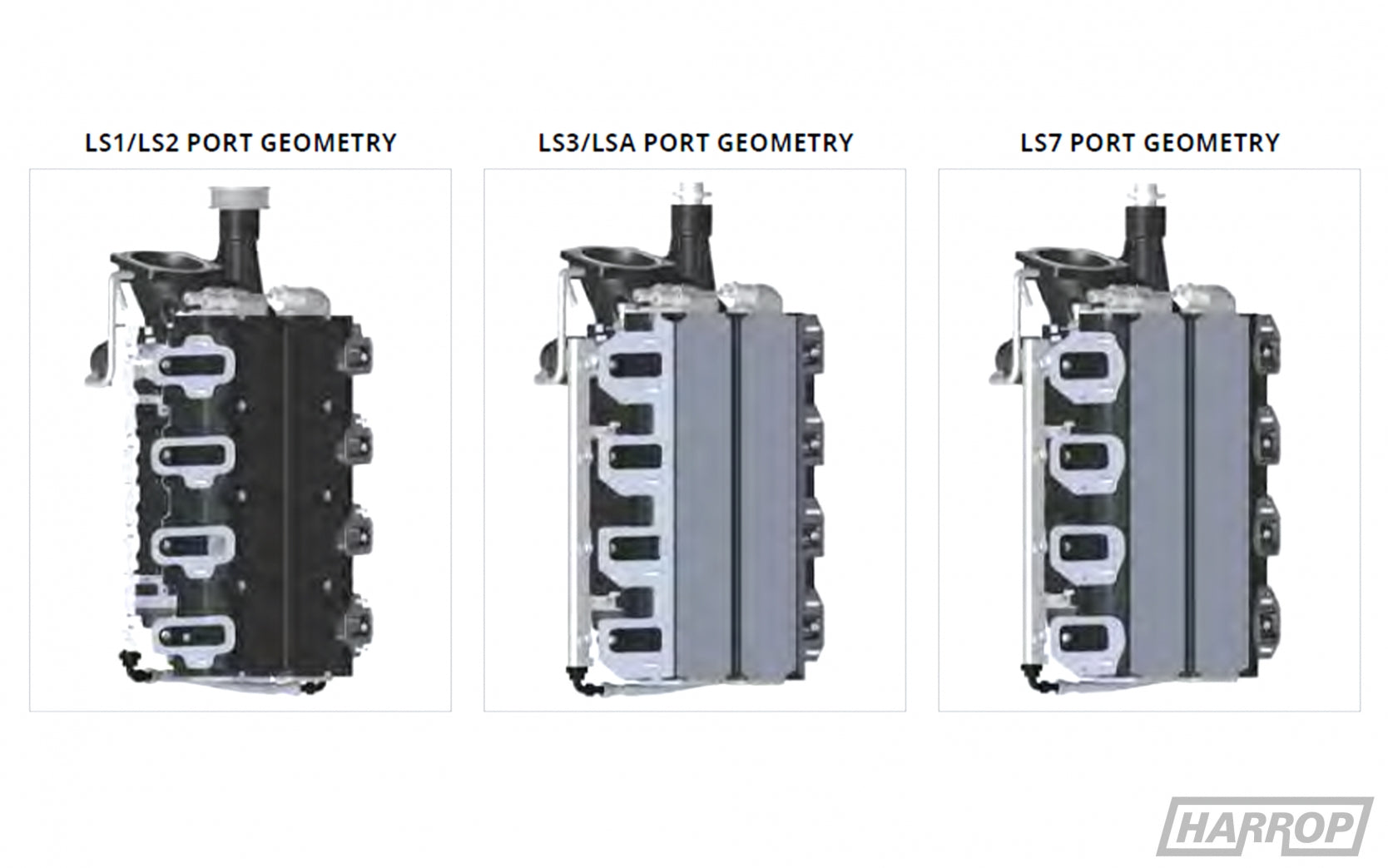

• Manifold available in cathedral, rectangle or LS7 port geometry

Harrop TVS Superchargers offer the latest in supercharger technology, utilizing the same Eaton TVS™ system as featured on the ZR1 Corvette and the ZL1 Camaro.

Harrop Superchargers feature extensive upgrades to the cooling system, to ensure optimum thermal efficiency with the inclusion of twin pass intercooler cores in the manifold. The improved intercooler system provides greater thermal and volumetric efficiency to unleash the performance potential of the late model LS engine family.

The TVS2650 Supercharger Kit is the ultimate system for LS engine equipped or retrofitted vehicles. Having been extensively tested and developed for over two years using SAE standards, the R2650 is validated to OEM specifications and resets the performance potential for positive displacement supercharger technology. Each unit is then individually tested in-house on a dynamometer to ensure reliability and durability.

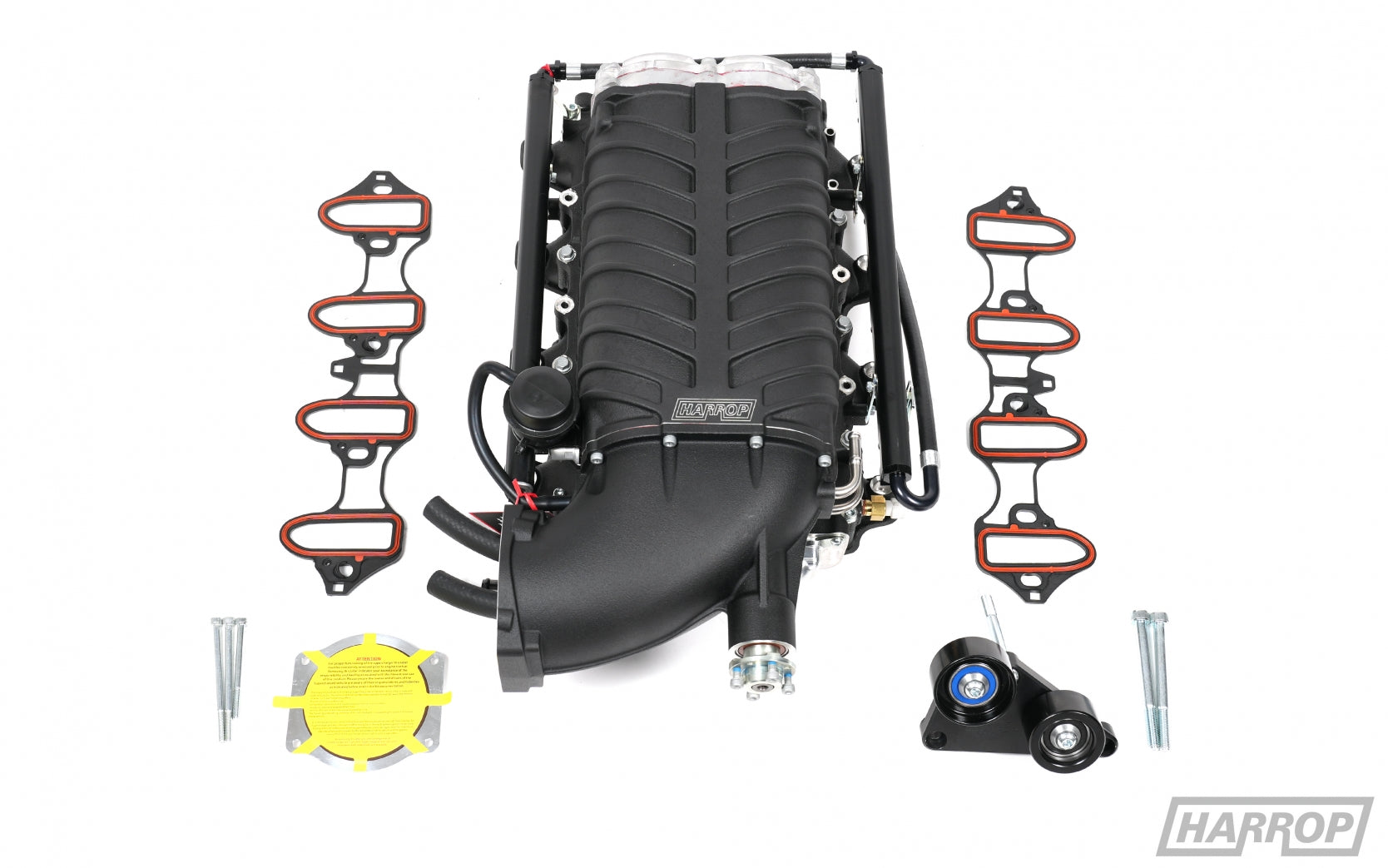

TVS2650 ENGINE KIT INCLUDES:

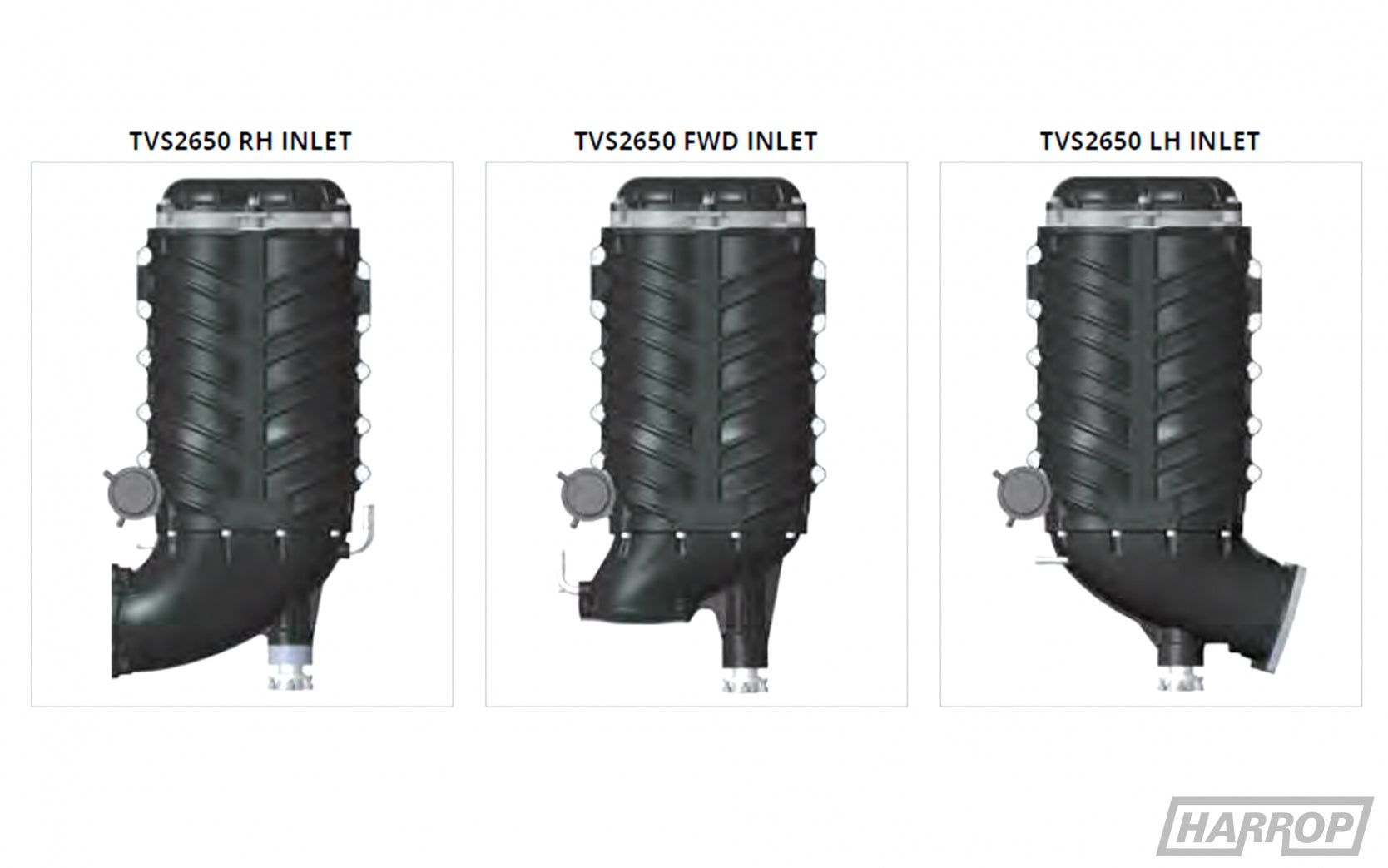

• High efficiency 2650 front drive front inlet supercharger
• Cast inlet manifold including twin intercooler cores, fuel rails and IAT sensor
• Valley plate, and bolts (if required)
• Inlet manifold gaskets

• Supercharger FEAD Idler - 6pk

• Supercharger Pulley

TVS2650 ENGINE KIT DOES NOT INCLUDE:

• Intake (CAI or OTR)
• Throttle body
• Patch looms/Harnesses
• Injectors
• Intercooler kit /front mount heat exchanger
• Install kit including loom extensions, hoses and fittings
• MAP sensor

APPLICATIONS:

• LS Engines

NOTE: There may be additional and/or custom parts required to complete supercharger fitment into an LS swapped vehicle.
The customer is responsible for checking and determining supercharger engine kit will be suitable for their vehicle.

(This product may subject to delays due to manufacturing and shipping)

Important Information:
Products sold without calibration require the consumer and installer take on the responsibility to tune the vehicle on a reasonable basis for emissions compliance. Products provided with no calibration are not eligible for supplemental warranty and are not legal for use in the state of California. Please visit the SEMA emissions page to check your local emission requirements.

Kits sold with calibration are CARB compliant for use in California and 50 state legal, any kits sold outside of the USA will require the end consumer to check and verify emission compliance with their local laws and regulations. It is the responsibility of the installer and end user to ensure that this product is being used within compliance of all applicable laws and regulations.
