Kong Performance LSA TVS2650

KONG LSA TVS 2650

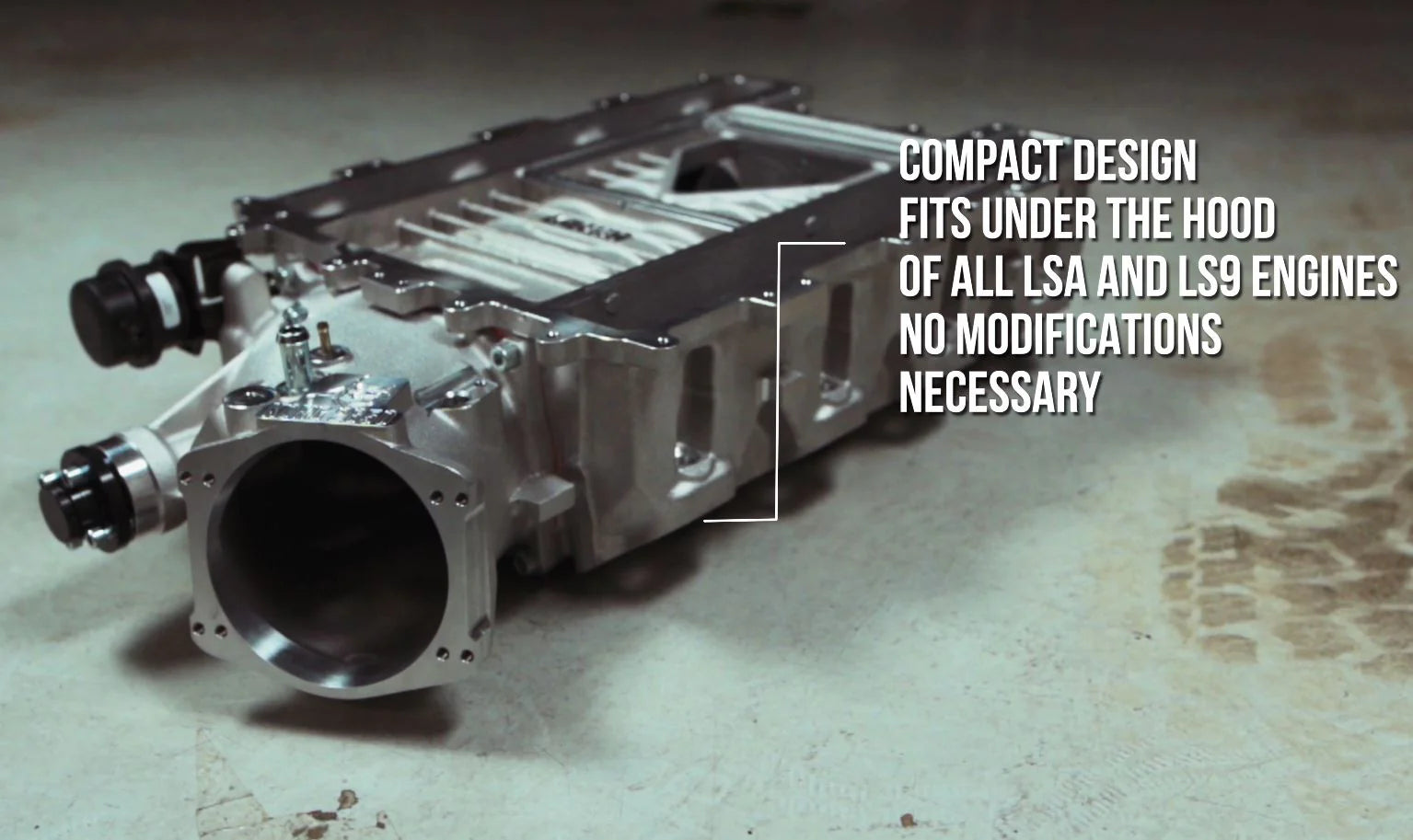

The Kong LSA 2650 has the same height as the factory supercharger which means hood clearance is not an issue. No modifications are required.

Details:

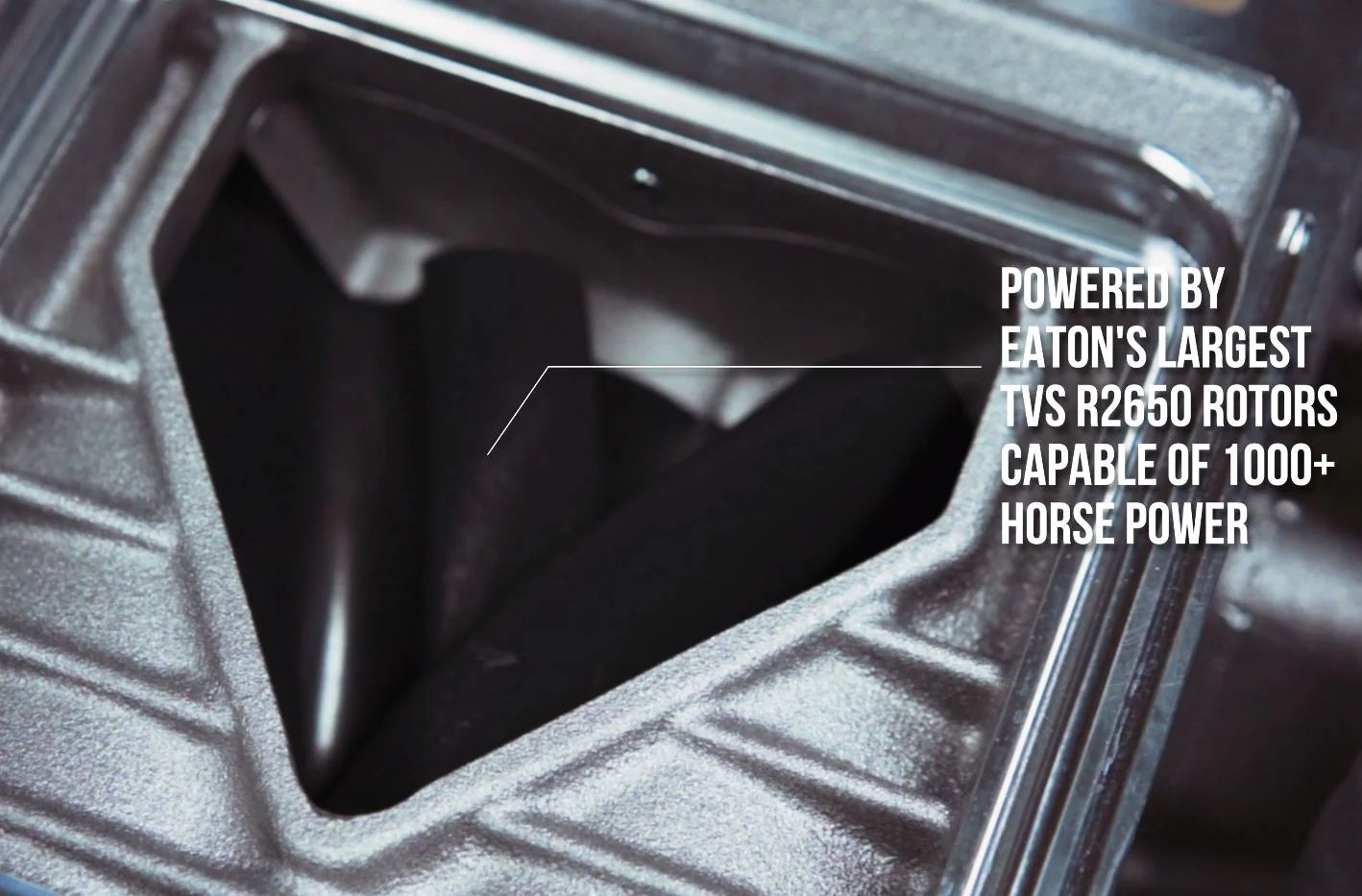

The TVS2650 is equipped with a high twist, 4-lobe rotor design. These rotors are 40% larger than the LSA TVS 1900 and feature several improvements to maximize efficiency and performance. The TVS 2650 is the largest Eaton TVS Rotor pack on the market.

Supercharger Lid / Intercooler

***This Supercharger does NOT include a lid or intercooler*** The Kong LSA 2650 is machined to retro fit any LSA or LS9 style lid. Before and after testing showed no noticeable increase in IATs when compared to the original LSA Supercharger.

Other Information

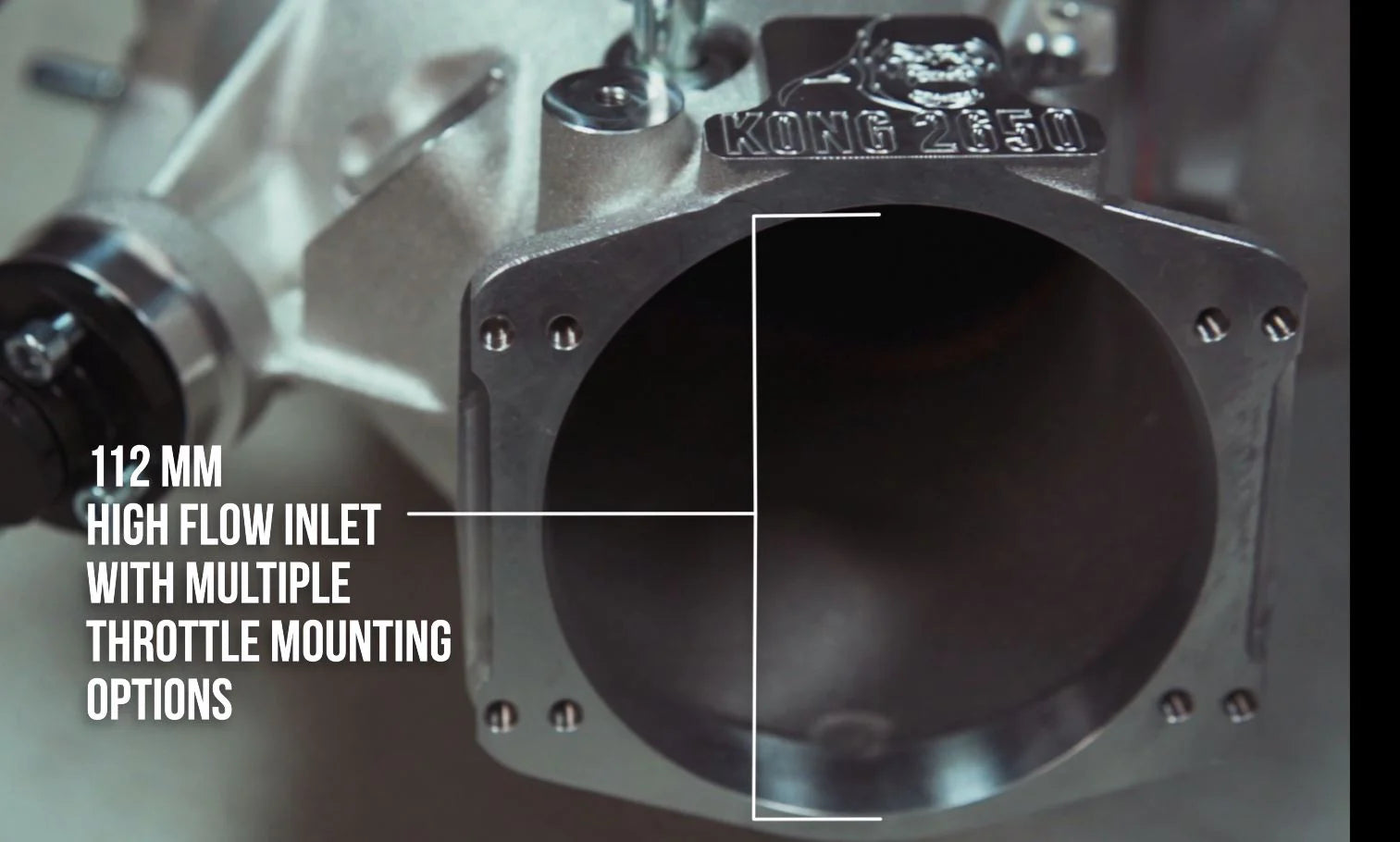

-Compatible with LS style throttle bodies up to 112mm.

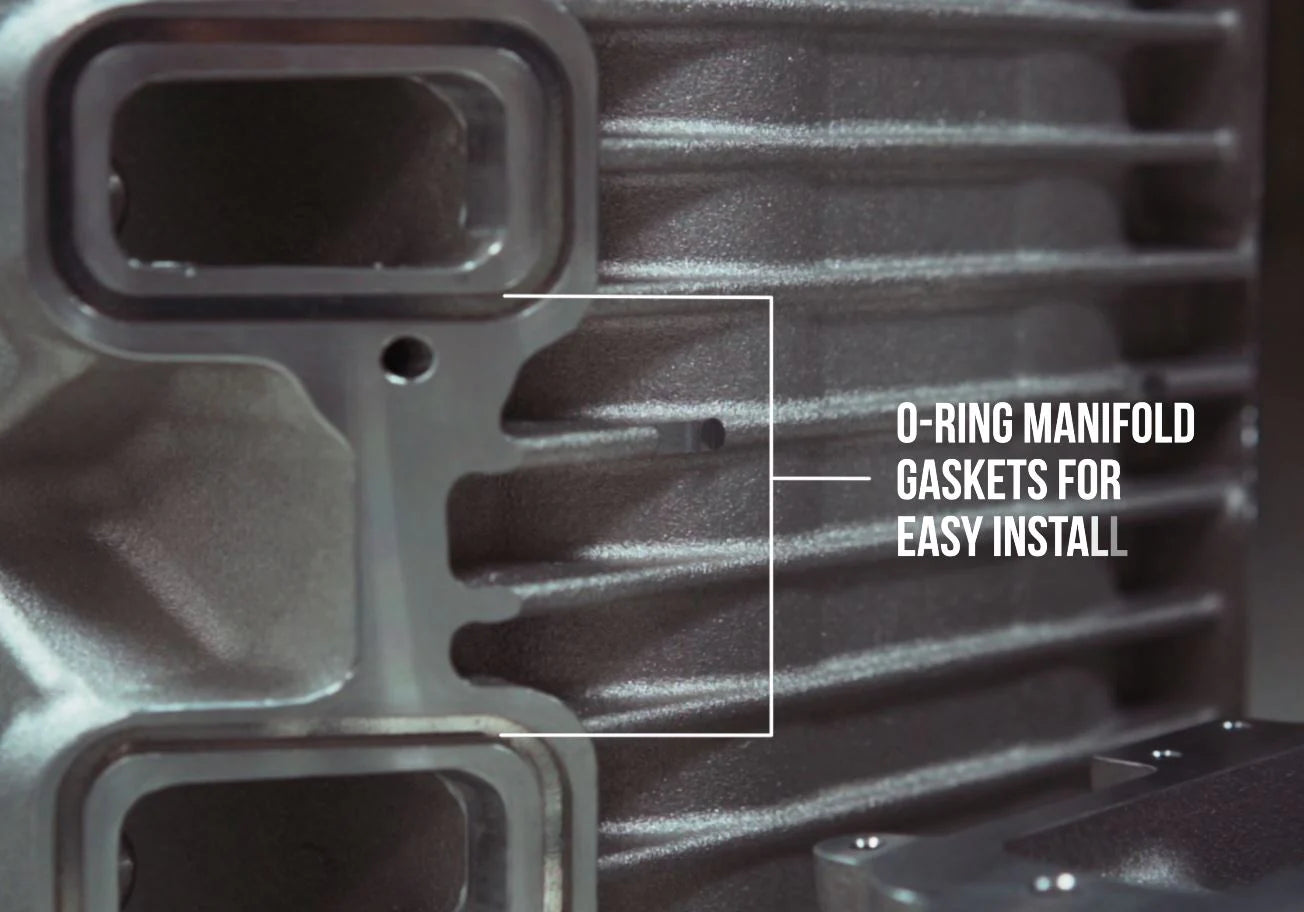

-Machined in O-ring to manifold style gaskets allow for easy installation of the supercharger.

-Kong LSA 2650 specific supercharger pulleys will be required when purchasing the unit.

-Compatible with any LS engine using an LSA belt drive with LS3/LSA/LS9 style Cylinder Heads

Testing Details (Dyno Graph in Images)

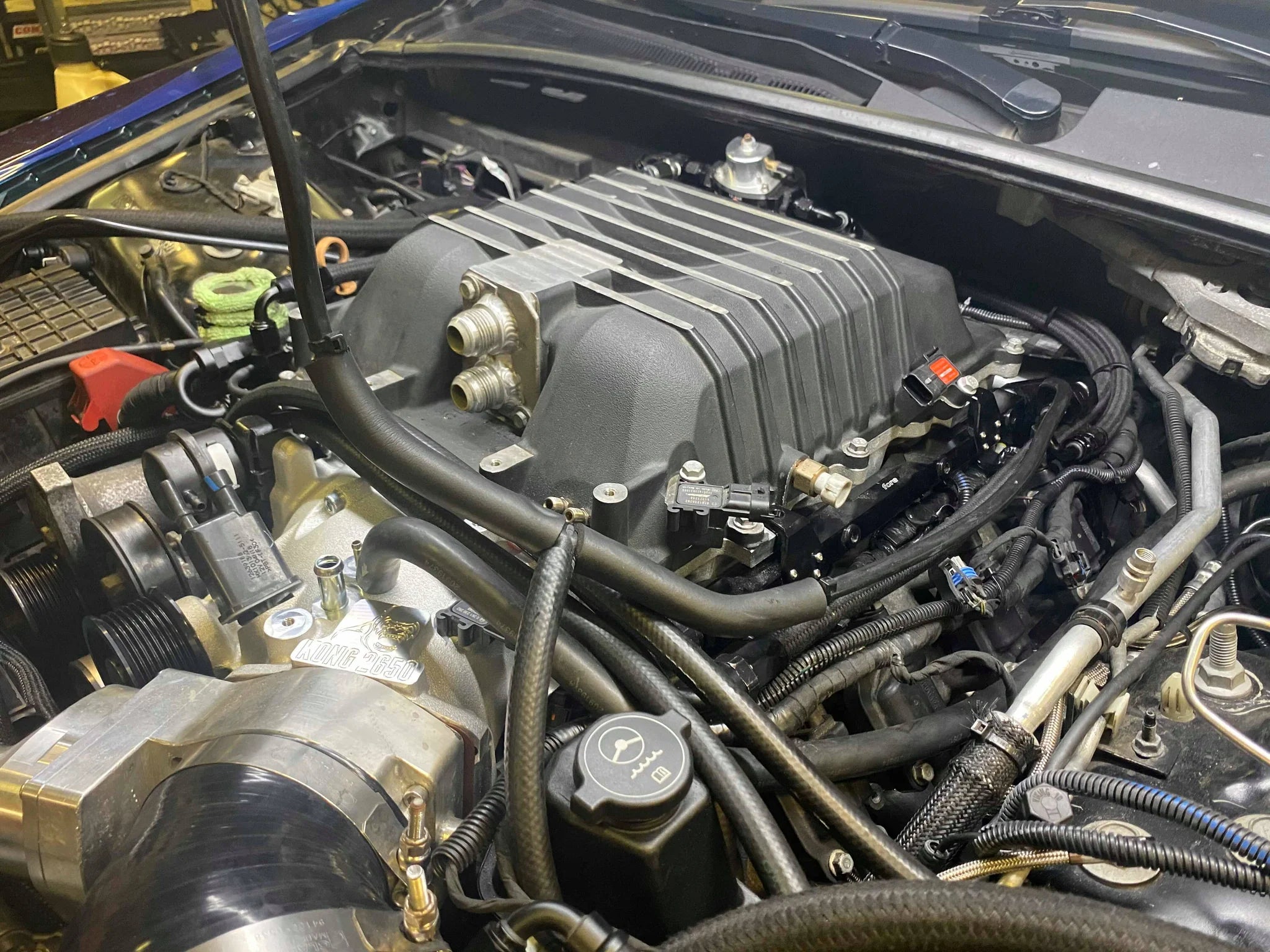

The first LSA vehicle tested was a 418ci LSA engine. The car baselined at 860rwhp with a ported factory LSA supercharger and a 2.55" upper. We then swapped on the Kong LSA 2650 the same day and made 1003rwhp with a 3.0" pulley. No other changes. Roughly +140rwhp was achieved while turning the Supercharger slower than the previous setup. See the test vehicle and dyno sheet in the images section.

WARRANTY:

There is a 1-year parts warranty on the Kong 2650 supercharger. Any disassembly or aftermarket porting of any kind will immediately void ALL warranty claims.

Return Policy: 30 days

Note: (This product may subject to delays due to manufacturing and shipping)
